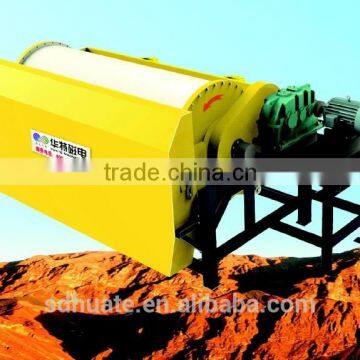

Series JCTN---The Concentrate Upgrading Drum Permanent Magnetic Separator

Specifications

Series JCTN The Concentrate Upgrading Drum Permanent Magnetic Separator

Application:

It is a wet drum magnetic separator designed to rinse and purify the magnetic minerals. According to the process requirements, it can rinse, fine separate and purify, deslime and condense the magnetic minerals.

Widely used in the following phases.

1.  Separate and deslime the overflow materials by classifier after the first grinding.
2. Condense mineral before second grinding and filtrating.
3. Magnetite deslime before entering fine sieve and screening or anti-flotation separation.
4. The final concentration for the magnetite.

Features:

1. Adopt the tube feeding device to achieve evenly feeding mineral through the overflow plate overflowing.
2. The magnetic system is designed with large wrap angle 240~270° and multi poles. The structure can be transformed to achieve the reasonable beneficiation index according to the mineral properties and mineral processing index.
3. It’s equipped with magnetic field stirring apparatus inside the drum.
4. With the downstream feeding way, the counter-rotating drum and a multi-stage rinsing water design (open and close alternatively depending on the circumstances)
5. Adopt polyurethane scraper to discharge ore with two stages’ device to ensure clean discharge.
6. Adopt frequency conversion in the transmission system.
7.
   Packaging & Shipping

   Standard export package in wooden cases, standard container, flat rack container or pack according to the requirements of customers. Arrange the delivery around 45 days after receipt of the advanced payment.




   Our Services

      Engineers are available to serve the machinery overseas.
