Home > Products > Magnetic Separator for Mining > Dry Magnetic Separator

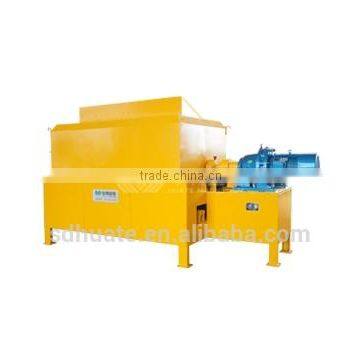

Dry Magnetic Separator

FOB Price

US$ 15,000 - 40,000 / Set

1 Set(Min. Order)

Port Qingdao Port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Magnetic Separator
Production Capacity	as you required	Place of Origin	Shandong, China
Brand Name	Huate	Model Number	kind of models
Voltage	as you required	Power(W)	as you required
Dimension(LWH)	as you required	Weight	as you required
Certification	as you required	Warranty	one year
After-sales Service Provided	Overseas service center available

Product Description

Specifications

Used to the particle size of 0 ~ 30mm, grade of between 5% to 20% of low-grade magnetite primaries and dry powder oreaas pre-sel

Product Description

Dry magnetic drum separator 1. Application:

Used to the particle size of 0 ~ 30mm, grade of between 5% to 20% of low-grade magnetite primaries and dry powder ore’s pre-selection, effectively improve the grade into the mill to reduce the processing cost.

2. Technical Features

*The multi-pole is arranged in the internal magnetic system and can increase the stirring of the magnetic particles.

* 180°broad-angle magnetic system can effectively improve the iron ore of recovery rate.

*Drum surface used in wear-resistant ceramics, the hardness of HRA is ≥85,can reach HRA92 above.

* Simple material distribution structure, and more convenient to control the fine, tailing grade.

3. The main technical parameters:

Model	specification		Speed(r/min))	Drum surface Magnetic field intensity (mT)	Capacity(T/h))	Dimensions(mm)	Motor power(Kw)	Weight(kg)
Model	Drum diameter(mm)	Drum length(mm)	Speed(r/min))	Drum surface Magnetic field intensity (mT)	Capacity(T/h))	Dimensions(mm)	Motor power(Kw)	Weight(kg)
CTF-0818	800	1800	50	According to the nature of the material	55-70	345511501940	11	3300
CTF-0821	800	2100	50		70-85	375511501940	15	3900
CTF-0824	800	2400	50		85-100	415511501940	18.5	4450
CTF-1021	1000	2100	50		100-130	391513402035	18.5	4800
CTF-1024	1000	2400	50		120-150	421513402035	18.5	5370

Packaging & Shipping

wooden cases/steel frame,or according to the customer's requirements. Fumigation packaging!

Our Services

12 monthes after-sale service. Best quality with easy maintainess.
