Series CTB mineral high-intensity Permanent-Magnetic wet drum magnetic Separator

Specifications

 APPLICATION:

To separate the weak magnetic mineral , eliminate the magnetic mineral from non-magnetic minerals.

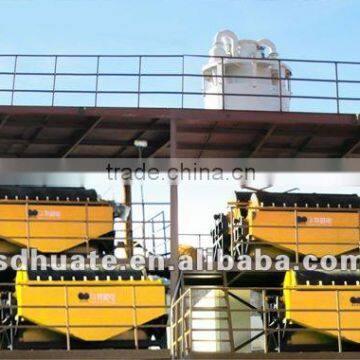

CTB Drum Permanent Magnetic Separator

1.Adopting advanced magnetic circuit design deep magnetic effective depth and high recovery.

2. simple and compact structure,strong magnetic force.

3.easy to maintain,easy installation,reliable performance.

4.stable and reliable driving device,no malfunction or breakdown for a long time.

Working principle:

When the raw materials flow into the tank body of the wet drum magnetic separator, firstly , the following directon of the raw materials is the same as the rotary direction of the magnetic drum .,the iron magnetite materials are attracted to the surface of drum.this is the first separation. In the second step ,the flushing water below flush the raw materials back for the second separation, this time the flowing direction of the raw materials is opposite to the rotary direction of the magnetic drum,then along with the rotation of the drum, the iron magnetite materials on the surface of drum will finally leave the magnetic field and fail to do the ore concentrate box under gravity, Also ,the flushing water above helps to flush the iron magnetite into the ore concentrate box, the weak magnetic and non-magnetic materials can not be attracted and will flow to the discharge pipe for tailings.

Technical Parameter:

   wooden cases/steel frame,or according to the customer's requirements. Fumigation packaging!

   12 monthes after-sale service. Best quality with easy maintainess.

Compang name:Shandong Huate Magnet Technology Co.,Ltd.

Address: Huate Road,Linqu Econonmic Development Area, Weifang City, Shandong Province, China.

Tel:0086-536-3391868     Contact person: Ms.Anna Wu
