High Speed HDPE Bottles Jerry Cans Blow Molding Machine
- Shanghai
- T/T
You May Like
-
Automatic Detergent/shampoo Bottle Blow Molding Machine Bottle Making Machine
-
1 Litre Plastic Bottle Making Machine
-
Shampoo Detergent Bottle Making Machine
-
Shampoo Bottle Blow Molding Machine Bottle Making Machinery
-
Automatic Plastic Bottle Blow Molding Machine Bottle Making Machine
-
Small Plastic Bottle Blow Molding Machine Bottle Making Machine
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | APOLLO | Model Number | ABLB75 | |
| Voltage | 380v | Power(W) | 32.5kw | |
| Dimension(L*W*H) | 3.5 2.2 2.4 | Weight | 5.2ton | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

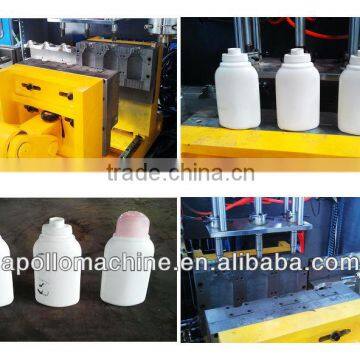

High speed HDPE bottles jerry cans blow molding machineAuto deflashing unit

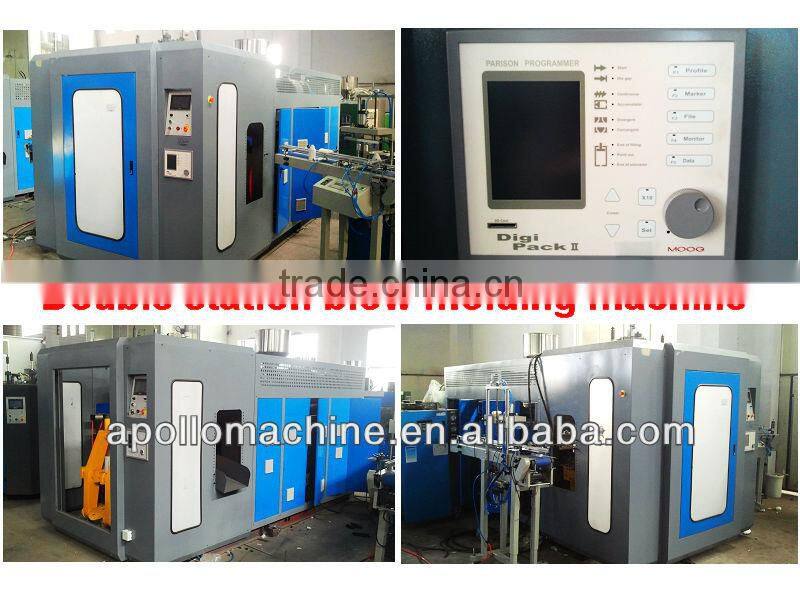

Parison control system
Energy saving type
High speed HDPE bottles jerry cans blow molding machine
Cosmetic bottles making machine
Plastic bottle blow molding machine
Chemical bottles jerry cans producing machine
Automatic Plastic bottles jerry cans blow molding machine HDPE
Products:
This type of machine is suitable to produce different shapes of plastic bottles from 50ml to 5L.

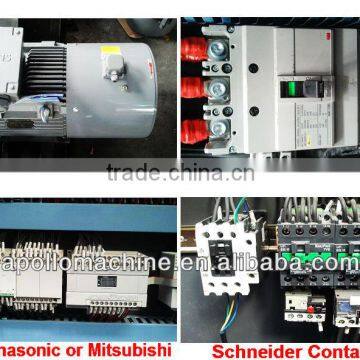

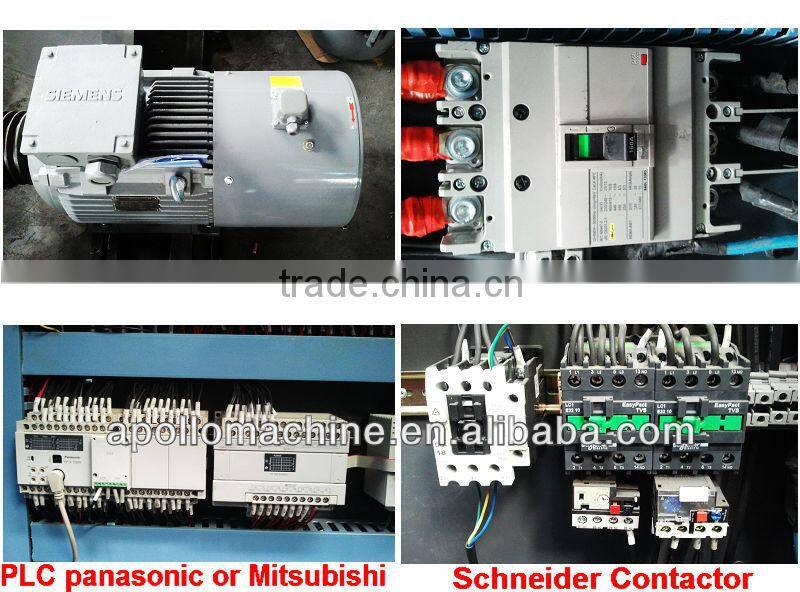

Adopt Mitsubishi PLC from Japan
Contactor use Schneider from France
Most of spareparts of hydraulic system and pneumatic system are imported from Japan,Korea,France and Taiwan,china to ensure the quality of the machine
Related technical parameters:
Technical Parameters: ( ABLB75Ⅱ )
Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
Max volume | 1L (3 die head) | ||
Output capacity | 720~780 pcs/h | ||
Size | 4.3×2.35×2.8(M) | ||
Weight | 8T | ||
system | Specification | Parameters | Note |
Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature |
|
Reducer | Hard finishing,High intension,Low noise reducer |
| |
Screw | 75mm,L/D ratio 24, 38CrMoALA | Cooling system | |
Plasticization | 100Kg/H | HDPE | |
Heating Zone | 3-4 Aluminum Heater | Automatic heating | |
Heating power | 7KW/H |
| |
Extrusion Motor | Three phase asynchronous motor (380V,50HZ) |
| |
Cooling Fan | 3-4zone | Automatic cooling | |
Extrusion system | Summarize | High-grade alloy steel, center feeding |
|
Die head number | 3 |
| |
Center distance of die heads | As per your sample |
| |
Max die mouth | 90mm |
| |
Heating zone | 3-4 Stainless steel heating cycle |
| |
Heating power | 2~5KW |
| |

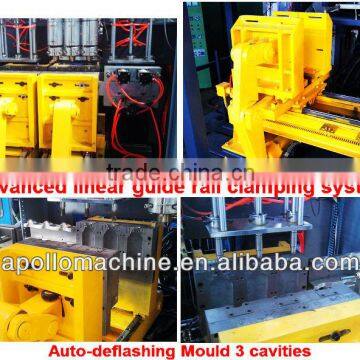

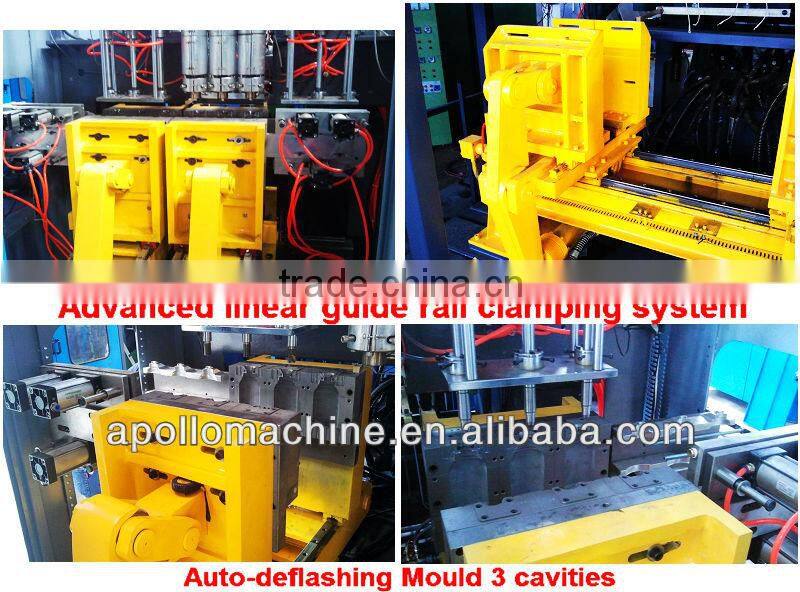

Clamping system | Summarize
| High intension, rigidity, center mold locking, stable mould opening and clamping system |
|
Clamping force | 80KN |
| |
Template distance | 148~600mm |
| |
Max mould size | 400X450mm |
| |
Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) |
Japanese Mitsubishi PLC system |
Operate interface | Touch screen, automatic self-diagnose alarm system |
| |
Temperature control | Automatic temperature control module |
| |
Movement control | Japanese Mitsubishi, Chinese/English Version |
| |
Electric protection | Ampere overload, electric short circuit self-protection function |
| |

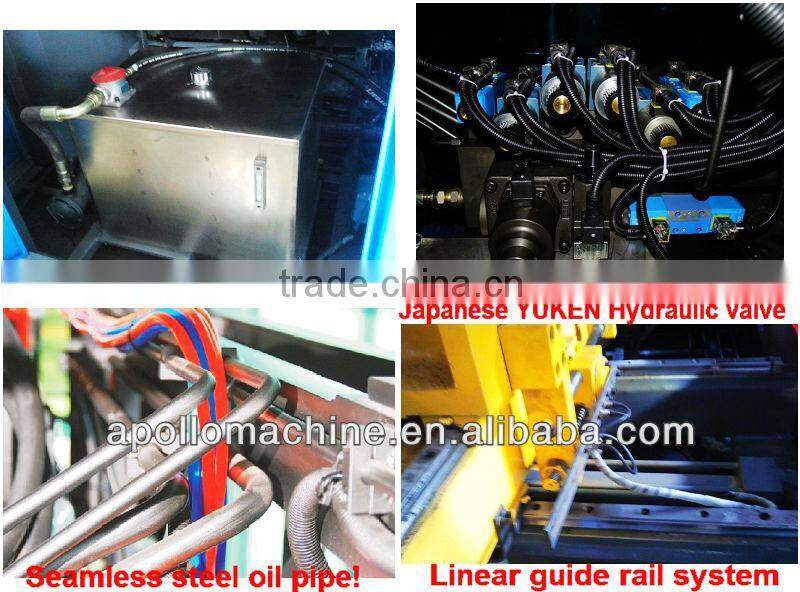

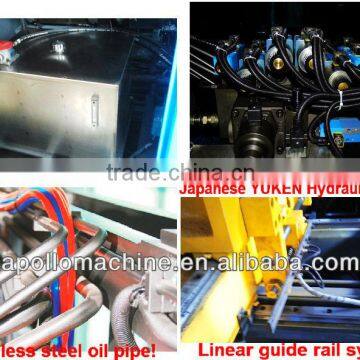

Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient |
|
Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) |
| |
Oil pump | Imported double pump |
| |
Valves | Imported oil pump valves and connections |
| |
Oil pipes | Double layer overpressure resistant |
| |
System pressure | 60Kg/cm² |
| |
Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system |
|
Air pressure | 0.6Mpa |
| |
Air displacement | 0.8M3/min |
| |
Electromagnetic valve | Taiwan AIRTAC |
| |
Cooling system | Summarize | Separate cooling system of mould, barrel and oil system |
|
Cooling medium | Water |
| |
Water flow | 80L/min |
| |
Water pressure | 0.3-0.6MPa |
| |
