Drug Bottle Blow Molding Machine Bottle Making Machine
- FOB SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Jiangsu, China | |
| Brand Name | APOLLO | Model Number | ABLB45II | |
| Voltage | Available | Power(W) | 14KW | |
| Dimension(L*W*H) | 2.6X1.6X2.2M | Weight | 3T | |
| Certification | CE | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
blow molding machine1,CE Certification
2,Advanced technology
3,Good after-sale service
4,Competitive price

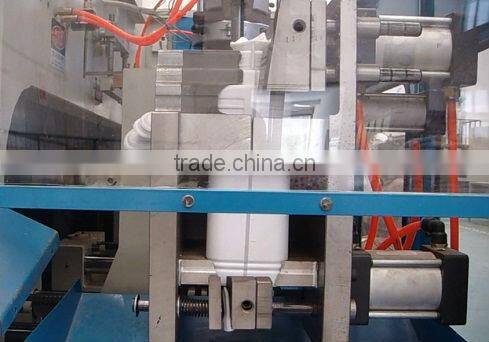

Automatic extrusion blow molding machine
Model No.: ABLB45Ⅱ(double station single die head)
Plastic blow molding machine ABLB45Ⅱ is mainly designed for making various kinds of plastic containers such as : oil bottles,lubricant bottles,detergent bottles,cosmetic bottles,plastic balls so on. Double station and single die head design make the output higher and more efficient.
The features of the blow molding machine:
(1)It is suitable for producing PA, PE,HDPE,PP, PVC,PETG,PS so on,plastic containers and bottles in all shapes are available,the duct volume is up to 500ml.
(2)Double station single die design,stable and higher output capacity.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.

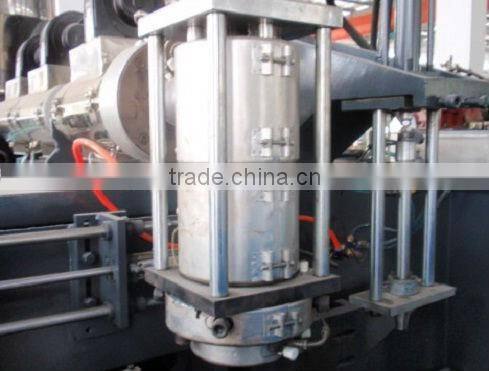

Die head | |
Single die head Stable and easy to maintenance |

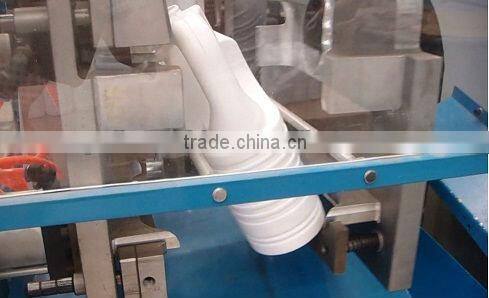

Auto deflashing unit | |
This device is able to remove the extra parts of products
|
Product after auto-deflashed | |
Perfect product Save your manual Cost. |

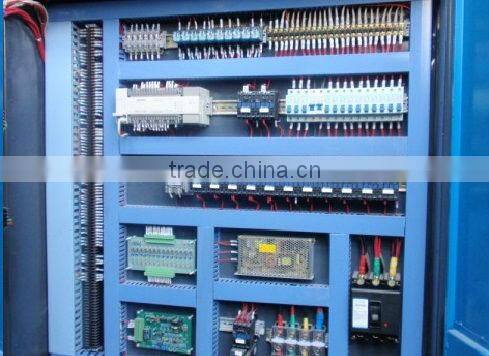

Electric Cabinet | |
This part is the full electric components of the machine |
The main components of the blow molding machine.( ABLB45Ⅱ)
electronic parts | |
Name | Trader |
Micro computer control system | Japanese MITSUBISHI |
Temperature Controller | TAIWAN YANHUA PID |
Auxiliary Relay | OMRON |
contactor | Schneider from France |
Electric motor | Three phase 220V or 380V |
Power Source | TAIWAN MEANWELL |
Transducer | TAIDA FROM CHINA |
hydraulic parts | |
Name | Trader |
Oil pump | TAIWAN HIGH-TECH |
Valve | JAPAN YUKEN |
Oil pump and connection | JAPAN YUKEN |
Sealed part | HALLITE |
air control system | |
Name | Trader |
Cylinder | AIRTAC |
Air Valve | FESTO |
Technical Parameters Of The Blow Molding Machine: ( ABLB45Ⅱ)
Max. Product volume | 1L |
Out put capacity | 700*2pcs/h |
Screw diameter | 45mm |
Screw L/D ratio | 24:1 L/D |
Screw drive power | 11 KW |
Screw heating capacity | 3 |
No.of heating zone | 3 zones |
Output of HDPE | 30 KG/H |
Oil pump drive power | 5.5 KW |
Clamping force | 35KN |
Max.size of mold | 250*320mm |
Mold stroke | 290*320mm |
Max.die diameter | 80mm |
Blowing pressure | 0.6mpa |
Air Volume | 0.4M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 30 L/MIN |
Size of Machine | 2.6x1.6x2.2m |
Weight of machine | 3 ton |
