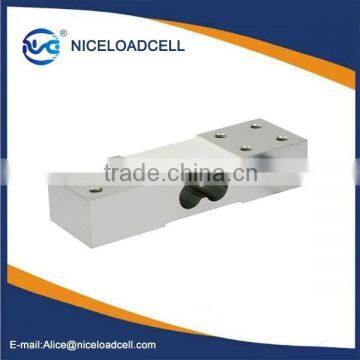

30kg Single Shear Beam Load Cell
US$ 5 - 10
/ Set
10 Sets(Min. Order)
- FOB SHENZHEN
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | CZS | |
| Model Number | CZS619 |
Product Description
Single Point Shear Beam weighing scales aluminum Load Cells
Rated load (kg): 20,30,50,60,100,150,200,250,300
Main features:
Alloy aluminum.
It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion,
integral structure and easy installation.
Suit for electronic top scale, floor scale and other weighing equipment
Size:125x40x24mm
Recommended Platform Size:350X400MM
| Precision | C2/C3 |
| Zero balance(%F.S) | ±1.5%FS |
| Rated output(mv/v) | 2.0±0.2mV/V |
| Creep(%F.S/30min) | ±0.02/±0.017 |
| Excitation voltage(V) | 9~12(DC) |
| Input resistance(Ω) | 405±6Ω |
| Output resistance(Ω) | 350±3Ω |
| Ultimate overload (%F.S) | 150% |
| Insulation resistance(MΩ) | ≥5000(100VDC) |
| Temp. effect on span(%F.S/10℃) | ±0.02/±0.014 |
| Comprehensive error(%F.S) | 0.03±0.017%FS |
| Temp. effect on zero(%F.S/10℃) | ±0.03/±0.017 |
| Use temp. range(℃ ) | -10~+40 |
| Creep(%F.S/30min) | ±0.02/±0.017 |
| Safe overload (%F.S) | 120% |
| Defend grade | IP65 |
Dimension Size:
Wiring schematic diagram:
Red: Input ( + ) 111 White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )
Notes:It used 4-core shielded cable(φ5×3000mm)
Load instruction:
Suitable For :Body Scales
