Home > Products > Pressure sensor > 100Mpa Strain Gage Force Sensor

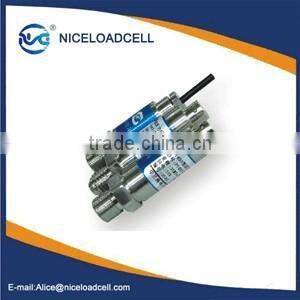

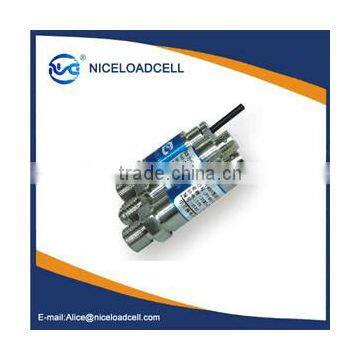

100Mpa Strain Gage Force Sensor
- FOB SHENZHEN
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | CZS | |
| Model Number | CZS403 |
Product Description
Aviation connector type
ABSTRACT:
Designed with import elastic component and advanced technics. High sensitive and good outsfanding shock &vibrating folerance ability.
Applying to low corrosive medium in many industrial process . 316 stainless steel and whole sealing, low profile, compactness. They have good ability of damp-proofing and good medium compatibility.
| PARAMETERS: | |
| Capacity Range | 0-10-100MPa |
| Comprehensive Precision | 0.2%FS , 0.3%FS, 0.5%FS, 1.0%FS |
| Output Signal | 2mV/V; 2mV/V; 2.5mV/V; 3.3mV/V; |
| Use Temp Range | -10~80℃-150℃ |
| Electric Connectio | 4-core plug or take-up nut |
| Excitation Voltage | 10(6~12)VDC |
| Defend grade | IP65 |
| thread Connection | 1/2-20UNF;or Others |
| overload | Safe overload:120%;Ultimate overload:150% |
EXAMPLE: PT403 - 35M - 02 - C - CW -02E - P5m | |||||||||||
PT4 | 35 | M | 02 | C | CW | 02E | P5m | ||||
01 | Models | ||||||||||
35 | Capacity(Noted by number) | ||||||||||
M | Pressure Mearsure( P=Ps,i B=Bar, M=MPa ) | ||||||||||
02 | Output Signal | ||||||||||
C | Precision (%FS)( A=0.1, B=0.2,C=0.3,D=0.5 ) | ||||||||||
CW | Temp. Of Medium(℃)( CW=-10~80,CG=-20~125,GW=-30~150) | ||||||||||
02E | Thread Connection:( 01=M8×1 02=M10×1 03=M12×1 04=1/2-20 | ||||||||||
P5m | Electric Connection option: | ||||||||||
