1000-800 Arch Sheet Roll Forming Machine
US$ 30,000 - 80,000
/ Set
1 Set(Min. Order)
- Dalian
- T/T
You May Like
-
PR Multi-shape Building Machine
-
914-650 Arch Sheet Roll Forming Machine
-
PR120 Automatic Roll Forming Machine for Curve Building
-
PRO Automatic Building Machine or Roll Forming Machine
-
1000-750 Arch Sheet Roll Forming Machine or Automatic Building Machine
-
PRO-240 Automatic Building Roof Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 80% | Place of Origin | Liaoning, China | |
| Brand Name | PRO | Model Number | PRO-240(1000-800) | |
| Power(W) | 17.9KW | Voltage | 380V | |
| Dimension(L*W*H) | 8900mm * 2230mm* 2300mm | Weight | 12T | |
| Certification | CE/ISO9001 | Warranty | 13 months after B/L date | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PR-1000-800 arch sheet roll forming machine
1.Technical parameters
Main Technical Specification: | |
Size: 11650mm × 2230mm × 2400mm | Total Weight: About 12000KG |
MainMotorPower:18.9KW | |
Bending power: 3.0kw+1.1x2kw Sewing power: 2.2kw | Cutting power:4.0kw Forming power:7.5kw |
Working Speed: Straight sheet: 15m/min Arch sheet: 13m/min Sewing: 16m/min | |
Feeding Width: 1000mm | Effective Width: 800mm |
Step of rollers: 14 steps | Controlling system: PLC (Ormon) |
Material of cutting blade: Cr12 moV | Sheet operating factor:80% |
Thickness of the coil: 0.6-1.5mm | Material of roller shaft: 45# steel, galvanized |
Material of rollers: 45# steel, quenched with hard chrome | Type of cutting: Roll-formed and length-set cutting |
Electric Standard : 380V / 50 HZ / 3 PHASE | The depth of the groove:114mm |
Proper span: ≤18m | Ship Container: 40`HQ x 1 |

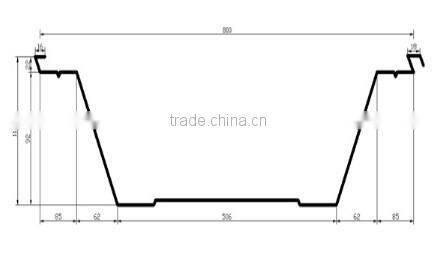

2.Profile

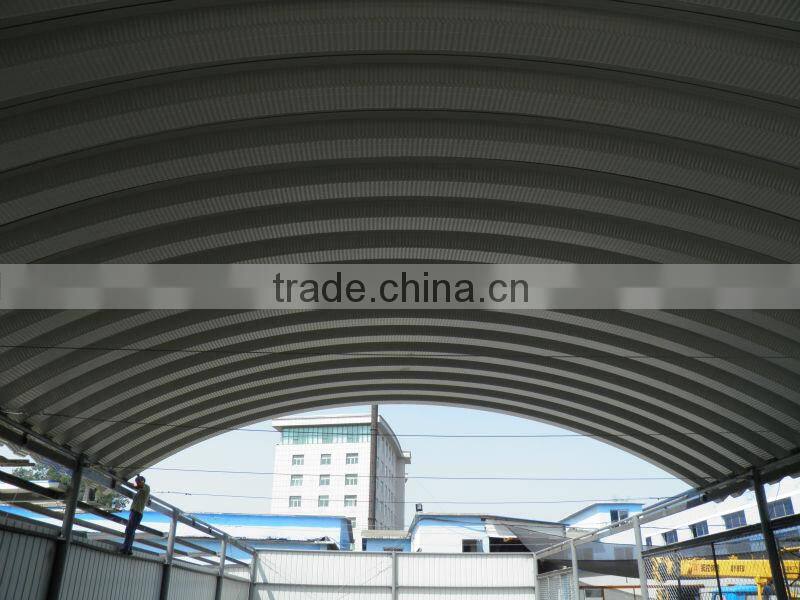

3.Arch roof project
4.Model list of PR Roll Forming Machine:
Model | Feeding width (mm) | Effective width (mm) | Depth of groove (mm) | utilization ratio | Thickness of steel coil (mm) | Largest span (m) |
PRO-600-300 | 600 | 300 | 100 | 50% | 0.6-1.5 | 30 |
PRO-600-305 | 600 | 305 | 109 | 50.8% | 0.6-1.5 | 28 |
PRO-914-400 | 914 | 400 | 210 | 43.7% | 0.6-1.5 | 40 |
PRO-914-610 | 914 | 610 | 203 | 66.7% | 0.6-1.5 | 38 |
PRO-914-650 | 914 | 650 | 181 | 71.1% | 0.6-1.5 | 26 |
PRO-914-700 | 914 | 700 | 123 | 76.5% | 0.6-1.5 | 22 |
PRO-914-750 | 914 | 750 | 180 | 82% | 0.6-1.5 | 14 |
PRO-1000-610 | 1000 | 610 | 243 | 61% | 0.6-1.5 | 42 |
PRO-1000-680 | 1000 | 680 | 223 | 68% | 0.6-1.5 | 38 |
PRO-1000-700 | 1000 | 700 | 175 | 70% | 0.6-1.5 | 30 |
PRO-1000-750 | 1000 | 750 | 138 | 75% | 0.6-1.5 | 24 |
PRO-1000-800 | 1000 | 800 | 114 | 80% | 0.6-1.5 | 18 |
PRO-1200-800 | 1200 | 800 | 265 | 67% | 0.6-1.5 | 40 |
PRO-1220-800 | 1220 | 800 | 355 | 66% | 0.6-1.5 | 42 |
PRO-1250-800 | 1250 | 800 | 320 | 64% | 0.6-1.5 | 45 |
5.Working flow:
Decoiler-----feeding------roll forming ------pressing----- cutting----output table
