Home > Products > New Products > 1000-680 Roof Roll Forming Machine

1000-680 Roof Roll Forming Machine

FOB Price

US$ 10 - 100,000 / Set

1 Set(Min. Order)

Port Dalian
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China		Brand Name	PR
Model Number	PRO240		After-sales Service Provided	Overseas service center available

Product Description

PR-1000-680 arch roof roll forming machine

1.Technical Parameter

Arch sheet roll forming machine:

Main Technical Specification:
Total MotorPower:18.9KW
Bending power: 3.0kw+1.1kwx2; Sewing power: 2.2kw	Cutting power: 4.0kw; Forming power: 7.5kw
Controlling system: PLC&Manual	Cutting: Mechanical cutting
The depth of the groove:223mm
Material of roller shaft: 45# steel, galvanized	Material of rollers: 45# steel, quenched with hard chrome

1. The rollers and shafts are both solid, the rollers are made by 45# steel plated with hard chromium.

2. Material of cutting blade: Cr12 moV

3. The thickness of our arch shaping leaf is 10mm, the process of manufacture for our arch shaping leafs are controlled by computer.

4. The length of the finished sheet is measured by the electronic measurement instrument or mechanical measurement instrument. Controlling system: PLC&Manual

5. Our machine can be divided in to two cutting ways, one is hydraulic, and the other is mechanical. Controlling system include manual and automatic. It can be also designed according to your requirement.

6. Straight sheet working speed: 15m/min; Arch sheet working speed: 13m/min; Sewing working speed: 16m/min

7. Step of rollers: 14 steps

8. Thickness of the coil: 0.6-1.5mm

9. Cutting: mechanical cutting & hydraulic cutting

10. Electric Standard : 380V / 50 HZ / 3 PHASES

11. Ship Container: 40’HQ x 1

12. Our hoisting tool is light and handy; the weight of hoisting tool of our company is 2KG. It is convenient to install and uninstall the hoisting tool. Its hoisting speed is quick.

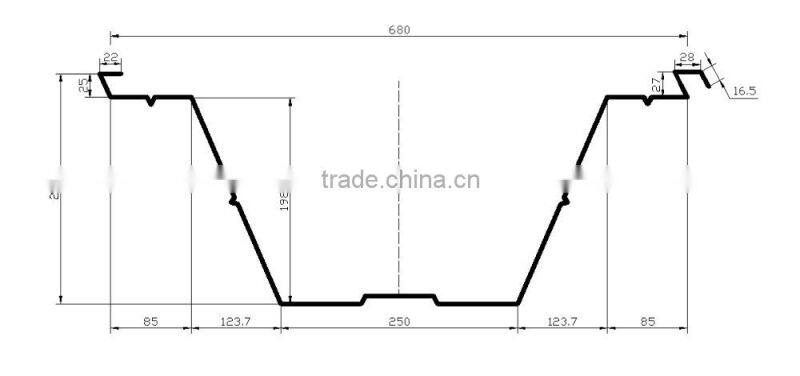

2.Drawing

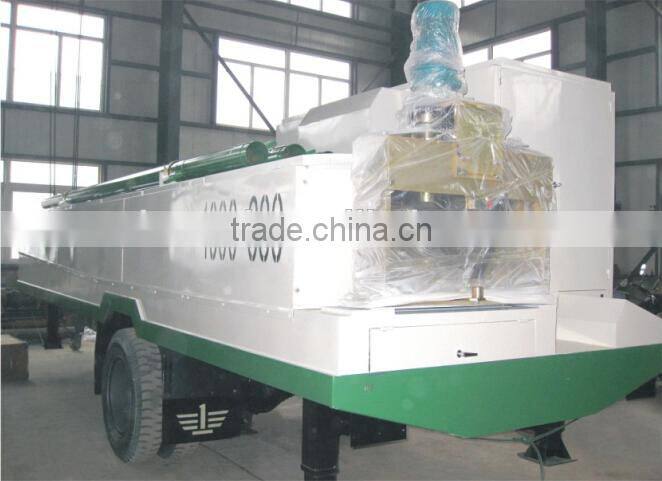

3.Picture of the product

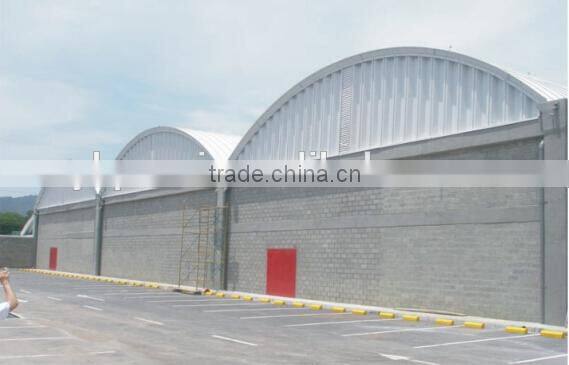

4.Arch roof project

5.Model list of PR Roll Forming Machine:

Model	Feeding width (mm)	Effective width (mm)	Depth of groove (mm)	utilization ratio	Thickness of steel coil (mm)	Largest span (m)
PRO-600-300	600	300	100	50%	0.6-1.5	30
PRO-600-305	600	305	109	50.8%	0.6-1.5	28
PRO-914-400	914	400	210	43.7%	0.6-1.5	40
PRO-914-610	914	610	203	66.7%	0.6-1.5	38
PRO-914-650	914	650	181	71.1%	0.6-1.5	26
PRO-914-700	914	700	123	76.5%	0.6-1.5	22
PRO-914-750	914	750	180	82%	0.6-1.5	14
PRO-1000-610	1000	610	243	61%	0.6-1.5	42
PRO-1000-680	1000	680	223	68%	0.6-1.5	38
PRO-1000-700	1000	700	175	70%	0.6-1.5	30
PRO-1000-750	1000	750	138	75%	0.6-1.5	24
PRO-1000-800	1000	800	114	80%	0.6-1.5	18
PRO-1200-800	1200	800	265	67%	0.6-1.5	40
PRO-1220-800	1220	800	355	66%	0.6-1.5	42
PRO-1250-800	1250	800	320	64%	0.6-1.5	45

6.Working flow:

Decoiler-----feeding------roll forming ------pressing----- cutting----output table
