Home > Products > New Products > 600-300 Roof Roll Forming Machine or Steel Sheet Roll Forming Machine
600-300 Roof Roll Forming Machine or Steel Sheet Roll Forming Machine
US$ 30,000 - 80,000
/ Set
1 Set(Min. Order)
- Dalian
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Type | Other, Tile Forming Machine, roll forming machine | |
| Tile Type | Steel | Use | Roof | |
| Place of Origin | Liaoning, China | Brand Name | PR | |
| Model Number | PR-120 | Power(W) | 5.5KW | |
| Voltage | 380v | Dimension(L*W*H) | 8900mm*2000mm*2400mm | |
| Weight | 10T | Certification | CE | |
| Warranty | 13 months after B/L date | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

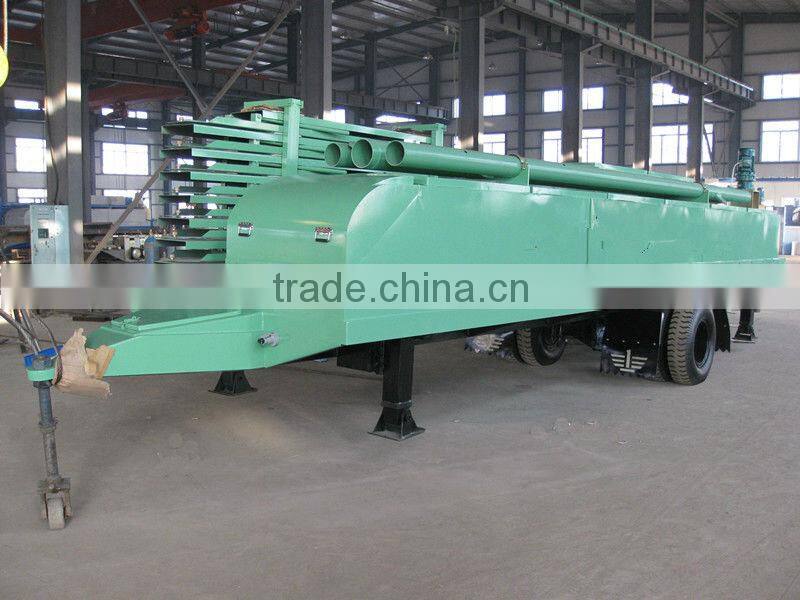

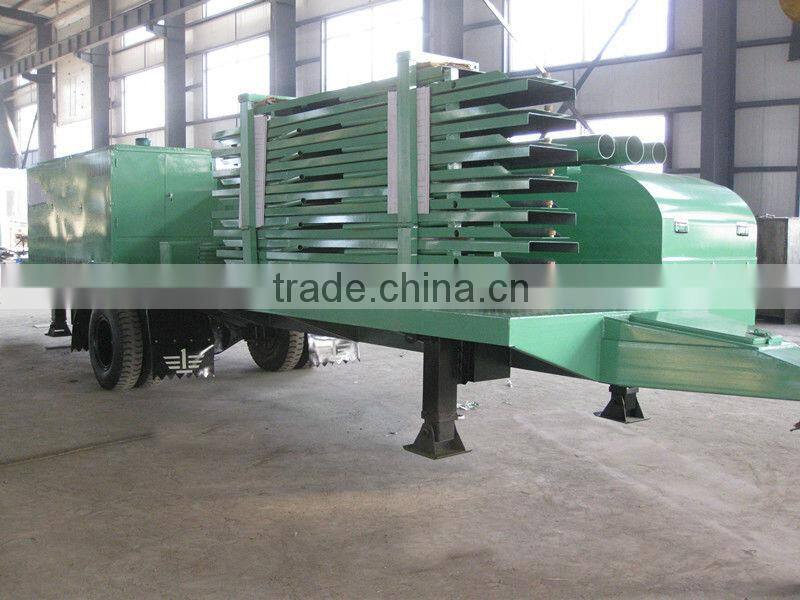

| 600-300 arch sheet roll forming machine |
nical parameters
Main Technical Specification: | |
Size: 8900mm×2000mm×2400mm | Total weight: About 10000KG |
Controlling system: PLC (Ormon) | Cutting material: Cr12mov |
Main motor power:5.5KW | Bending power: 3.0KW+1.5KW |
Cutting power: 3.0KW | Sewing power: 1.1KW+1.1KW |
Feeding Width: 600mm | Effective Width:300mm |
The depth of the groove:100mm | Sheet operating factor: 50% |
Largest Span: ≤35m | Ship Container: 40’GP x 1 |

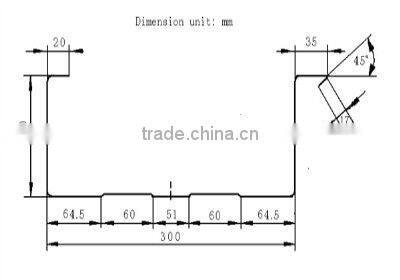

file

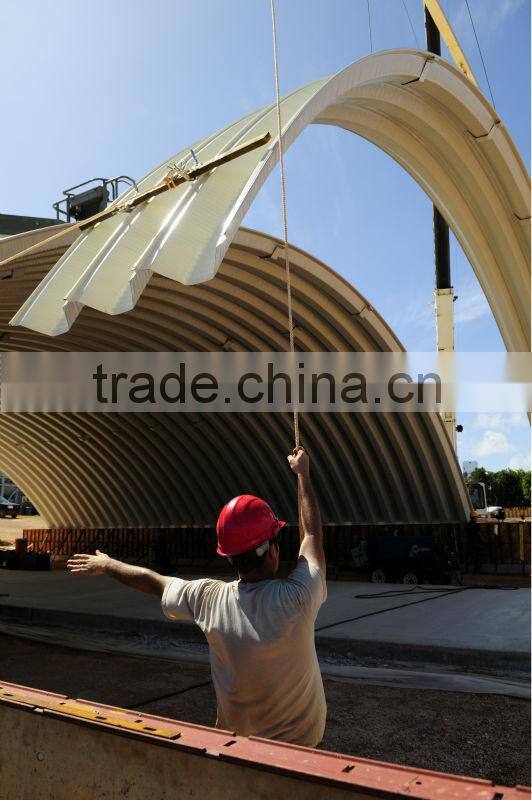

3. arch roof project
4.Model list of PR Roll Forming Machine:
Model | Feeding width (mm) | Effective width (mm) | Depth of groove (mm) | Utilization ratio | Thickness of steel coil (mm) | Largest span (m) |
BH-600-300 | 600 | 300 | 100 | 50% | 0.6-1.5 | 30 |
BH-600-305 | 600 | 305 | 109 | 50.8% | 0.6-1.5 | 28 |
BH-914-400 | 914 | 400 | 210 | 43.7% | 0.6-1.5 | 40 |
BH-914-610 | 914 | 610 | 203 | 66.7% | 0.6-1.5 | 38 |
BH-914-650 | 914 | 650 | 181 | 71.1% | 0.6-1.5 | 26 |
BH-914-700 | 914 | 700 | 123 | 76.5% | 0.6-1.5 | 22 |
BH-914-750 | 914 | 750 | 180 | 82% | 0.6-1.5 | 14 |
BH-1000-610 | 1000 | 610 | 243 | 61% | 0.6-1.5 | 42 |
BH-1000-680 | 1000 | 680 | 223 | 68% | 0.6-1.5 | 38 |
BH-1000-700 | 1000 | 700 | 175 | 70% | 0.6-1.5 | 30 |
BH-1000-750 | 1000 | 750 | 138 | 75% | 0.6-1.5 | 24 |
BH-1000-800 | 1000 | 800 | 114 | 80% | 0.6-1.5 | 18 |
BH-1200-800 | 1200 | 800 | 265 | 67% | 0.6-1.5 | 40 |
BH-1220-800 | 1220 | 800 | 355 | 66% | 0.6-1.5 | 42 |
BH-1250-800 | 1250 | 800 | 320 | 64% | 0.6-1.5 | 45 |
5.Working flow:
Decoiler-----feeding------roll forming ------pressing----- cutting----output table
