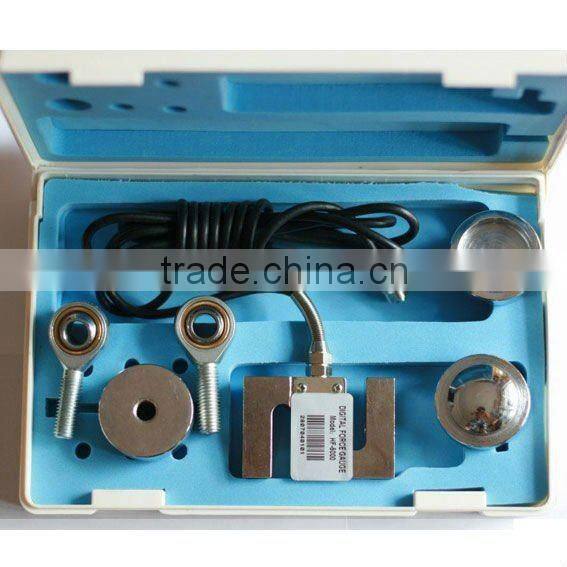

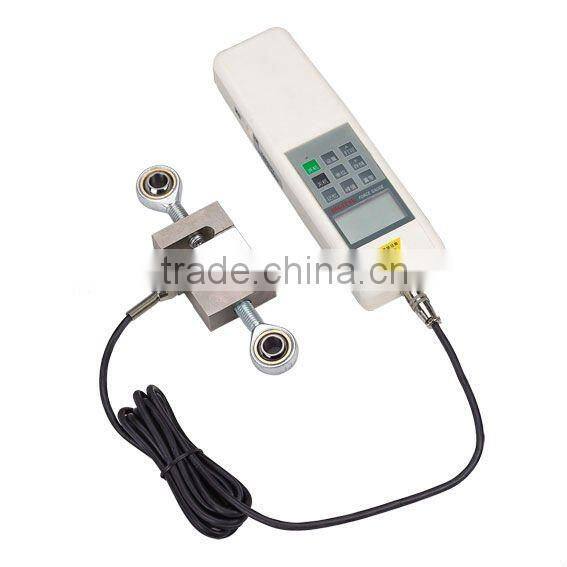

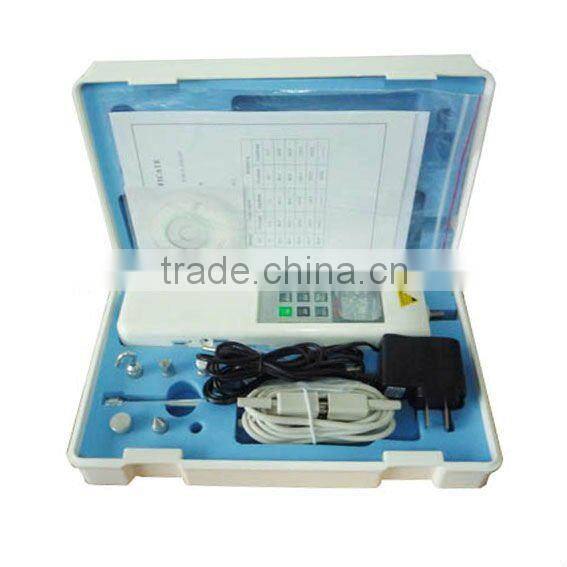

HF Series Digital Force Gauge With Extra Sensor(0-1000KN)
US$ 500 - 750
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | GRAIGAR | |
| Model Number | HF-1000 |
Product Description
Specifications
1.HF Series Digital Force Gauge with extra sensor(0-1000KN)2.6 digits screen display
3.RS 232 computer interface
HF Series Digital Force Gauge with extra sensor(0-1000KN)
Product:
HF Series Digital Force Gauge has its own characters, with facility, high resolution, which can be used not only for simple measurement of tension/compression force but also used for various testing purpose; such as switch test, connector insertion/withdraw test, and fracture test, is efficient push pull testing equipment in a new generation.
Specification:
Model | HF-1K | HF-2K | HF-5K | HF-10K | HF-20K | HF-50K | HF-100K | HF-200K | HF-500K | HF-1000K |
Capacity | 1000N | 2000N | 5000N | 10KN | 20KN | 50KN | 100KN | 200KN | 500KN | 1000KN |
Resolution | 1N | 1N | 1N | 0.01KN | 0.01KN | 0.1KN | 0.1KN | 0.1KN | 0.1KN | 1KN |
Sensor | +/-0.5% | +/-1% | ||||||||
Accuracy | Sensor Outside(S type) | Sensor Outdie(Cycle type) | ||||||||
Dimension | 230x66x36mm (9.1x2.6x1.42 inch) | |||||||||
