Home > Products > Mechanical Equipment > CS-12 TYPE LOAD CELL Extensively Applied in the Meterage Measurement Such as Mine , Iron and Steel.

CS-12 TYPE LOAD CELL Extensively Applied in the Meterage Measurement Such as Mine , Iron and Steel.

FOB Price

US$ 90 - 500 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Model Number	cs-12
Usage	Pressure Sensor	Theory	Resistance Sensor
Output	Digital Sensor

Product Description

CS-12 TYPE LOAD CELL Extensively applied in the meterage measurement such as mine , iron and steel.

Materials: Alloy steel

FUNCTION CHARACTERISTICS

>Second generation of CS-11.
>Do not need approach rail, better dynamic property.
>Extensively applied in the meterage measurement such as mine , iron and steel.

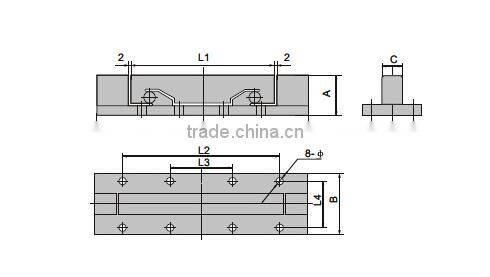

configuration:

kg/m		Rated Load	L	L1	L2	L3	L4
Light rail	11	1,2t	700	400	350	250	130
	18	2,3t	700	400	350	250	140
	24	5,7t	700	400	350	250	150
Heavy rail	38	10,15t	900	500	450	300	170
	43	10,15t	900	500	450	300	170
	50	10,15t	900	500	450	300	170
The crane rail	QU70	10,15t	900	500	450	300	175
	QU80	10,15t	900	500	450	300	185
	QU100	10,15t	900	500	450	300	205
	QU120	10,15t	900	500	450	300	225

kg/m		Rated Load	A	B	C	Φ
Light rail	11	1,2t	80.5	180	32	Φ13
	18	2,3t	90	190	40	Φ17
	24	5,7t	107	200	51	Φ22
Heavy rail	38	10,15t	134	220	68	Φ22
	43	10,15t	140	220	70	Φ22
	50	10,15t	152	220	70	Φ22
The crane rail	QU70	10,15t	120	225	76.5	Φ22
	QU80	10,15t	130	235	87	Φ22
	QU100	10,15t	150	255	108	Φ22
	QU120	10,15t	170	275	129	Φ22

Techincal Parameter

Sensitivity	1.0mv/v
Non linearity	≤0.1%FS
Hysteresis	±0.05%FS
Repeatability	≤0.05%FS
Creep	≤±0.1%FS/30min
Creep recovery	≤±0.1%FS/30min
Zero balance	2%FS
Zero temperature coefficient	≤0.1%FS10C
Rated output temperature coefficient	≤0.1%FS10C
Output resistance	700Ω
Insulation resistance	≥3000MΩ(50VDC)
Supply Voltage	5~15V
Safe temperature range	-30~+60C
Safe overload	130%FS
Defend grade	IP66
Method of connecting wire	input:Red(+)Yellow(-) output:Blue(+)White(-)
