CS-14 TYPE LOAD CELL Apply to Various Force Measurement by Platform Balance, Belt Balance, Hopper Scale
US$ 50 - 500
/ Piece
1 Piece(Min. Order)
- shenzhen
- T/T Credit Card PayPal
You May Like
-
CS-3 TYPE LOAD CELL Sensors Can be Used in Various Electronic Weighers for Vehicles. Material Hopper Weighers
-
CS-2 TYPE LOAD CELL Sensors Load Sensor Used for Transforming the Hoist Into Pendent Weigher.
-
CS-1 TYPE LOAD CELL Sensors Load Sensor Vehicle Load Sensor Material Hopper Weighers and Dynamo Metric Apparatuses.
-
Brand New HF-10K Digital Force Gauge With S External Sensor 10KN Push Pull Tester
-
Digital Force Gauge HF-5K With External Sensor 5000N Push Pull Meter HF-5000
-
Smart Sensor AR944 Underground Metal Detector Scanner Finder 1.5m High Sensitivity
Product Details
| Place of Origin | Guangdong, China | Model Number | cs-14 | |
| Usage | Pressure Sensor | Theory | Resistance Sensor | |
| Output | Digital Sensor |
Product Description
CS-14 TYPE LOAD CELL Apply to various force measurement by platform balance, belt balance, hopper scale.
Materials: Alloy steel
FUNCTION CHARACTERISTICS
>High degree of accuracy, high reliability,high interchangeability.
>Apply to various force measurement by platform balance, belt balance, hopper scale
>Apply to various force measurement by platform balance, belt balance, hopper scale

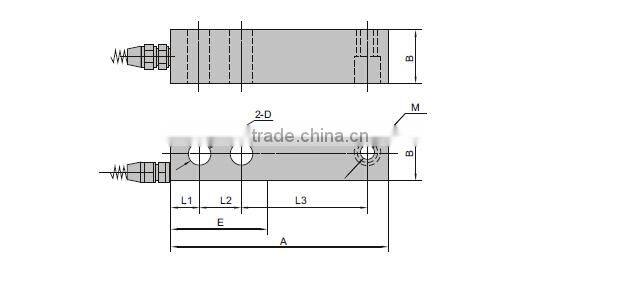

configuration:
| Rated LoadSize(mm) | A | B | D | E | L1 | L2 | L3 | M |
| 50,70,100,150,200, 300,500,700kg,1,1.5,2t | 130 | 32 | Φ13 | 57 | 16 | 25 | 76 | M12 |
| 3,5t | 171 | 38 | Φ21 | 76 | 19 | 38 | 95 | M20 |
| 7,10t | 226 | 51 | Φ25 | 102 | 25 | 51 | 124 | M24×2 |
Techincal Parameter
| Sensitivity | 2±0.01mv/v 3±0.01mv/v |
| Nonlinearity | ±0.03%FS |
| HYsteresis | ±0.03%FS |
| Repeataility | 0.02%FS |
| Creep | ±0.03%FS/30min |
| Zero balance | 2%FS |
| Zero temperature coefficient | ±0.03%FS/10℃ |
| Output resistance | ±0.03%FS/10℃ |
| Output resistance | 350Ω |
| Insulation resistance | ≥5000MΩ |
| Supply Voltage | 5~15V |
| Temperature compensation range | -10~+50℃ |
| Safe temperature range | -30~+60℃ |
| Safe overload | 130%FS |
| Defend grade | IP67 |
| Method of connecting wire | input:Red(+)Yellow(-) output:Blue(+)White(-) |
