Home > Products > Mechanical Equipment > CS-10 TYPE LOAD CELL Could be Used to Make Pyrostat , Specially for Steel-coating Balance.

CS-10 TYPE LOAD CELL Could be Used to Make Pyrostat , Specially for Steel-coating Balance.

FOB Price

US$ 50 - 500 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Model Number	cs-10
Usage	Level Sensor	Theory	Resistance Sensor
Output	Digital Sensor

Product Description

CS-10 TYPE LOAD CELL could be used to make pyrostat , specially for steel-coating balance.

Materials: Alloy steel

FUNCTION CHARACTERISTICS

>Doubleshear beam,plane loadbearing design.
>Strong yaw stiffness and retortion capability.
>It could be used to make pyrostat , specially for steel-coating balance.

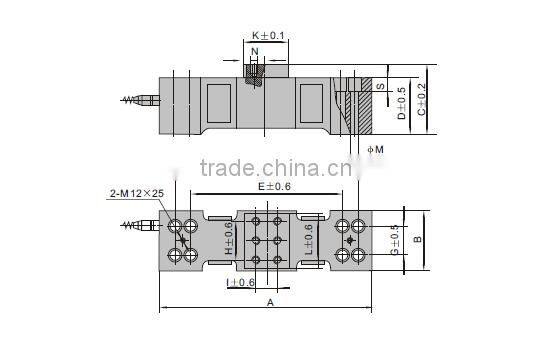

configuration:

Rated Load
Rated Load	A	B	C	D	E	F	G
20t	365	100	120	95	260	312	48
50t	450	120	130	105	298	398	68
100t	500	140	143	118	336	444	80
150t	560	160	158	133	372	500	94
200t	620	180	175	150	400	560	114
Rated Load
Rated Load	H	I	K	L	M	S	N
20t	64	38	76	90	18	20	M16×20
50t	75	40	80	110	26	25.5	M20×30
100t	90	44	90	130	32	32	M24×36
150t	102	44	90	150	32	32	M24×36
200t	110	44	90	160	32	32	M24×36

Techincal Parameter

Sensitivity	1.5±0.1mv/v
Non linearity	±0.05~±0.1%F.S
Hysteresis	±0.05~±0.1%F.S
Repeatability	0.03~0.05%F.S
Creep	±0.05~±0.1%F.S/30min
Zero balance	2%FS
Zero temperature coefficient	±0.02%F.S/10℃
Rated output temperature coefficient	±0.02%F.S/10℃
Output resistance	700Ω
Insulation resistance	≥5000MΩ
Supply Voltage	5-15V
Temperature compensation range	-10~+50℃
Safe temperature range	-30~+60℃
Safe overload	130%FS
Defend grade	IP67
Method of connecting wire	input:Red(+)Yellow(-) output:Blue(+)White(-)
