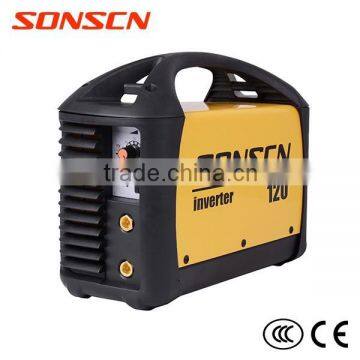

dc inverter pocket size mini welding machine
- All port in China
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | SONSCN | Model Number | ARC100-ARC400 | |
| Arc Current | 10-400A | Pulse Frequency | 60kHZ | |
| Pilot Arc Current | 15A | Rated Duty Cycle | 60% | |
| Motor Type | Other, no motor | Dimensions | 28x13x20cm | |
| Usage | Manual metal arc welding | Voltage | 220V /110V / 380V | |
| Power(W) | 3.5~12.5KW | Certification | CE,CCC | |
| Warranty | 12months | After-sales Service Provided | Overseas service center available |
Product Description
dc inverter pocket size mini welding machine
Product Description
mini welding machine has three specialized inverter functions give you more power and versatility. DC output current allows soft fusion for good penetration. Change polarity between DCEN (+), and DCEP (-). has following features:
- Hot Start lets you start welds easily.
- Power switch lights up to tell you the power is on.
- Thermal overload protection with indicator light.
- ARC Force provides a 15% over current to prevent sticking when the electrode enters the bath.
- Anti-stick lets you separate the electrode easily without reddening.
- High welding current stability for consistent output.
| Model | ARC200 | ARC180 | ARC160 | ARC140 | ARC120 | ARC100 |
Input voltage | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | 50/60hz | |
1~230V±10% | 1~230V±10% | 1~230V±10% | 1~230V±10% | 1~230V±10% | 1~230V±10% | ||
Rated input current | Max.29A | Max.24A | Max.22A | Max.20A | Max.18A | Max.16A | |
No-load voltage | 80V | 80V | 80V | 75V | 75V | 75V | |
Efficiency | 85% | 85% | 85% | 85% | 85% | 85% | |
Input power | Max.6.4kw | Max.5.3kw | Max.4.8kw | Max.4kw | Max.3.9kw | Max.3.5kw | |
Current range | 10-200A | 10-180A | 10-160A | 10-140A | 10-120A | 10-100A | |
Duty cycle | 35%@200A 60%@160A | 35%@180A 60%@140A | 35%@160A 60%@120A | 35%@140A 60%@110A | 35%@120A 60%@100A | 35%@100A 60%@80A | |
Welding rod | 1.5-5mm | 1.5-4mm | 1.5-3.2mm | 1.5-3.2mm | 1.5-2.5mm | 1.5-2.5mm | |
Protection class | IP21 | IP21 | IP21 | IP21 | IP21 | IP21 | |
Weight | 4.7kg | 4.6kg | 4.5kg | 4.1kg | 3.7kg | 3.2kg | |
Dimensions | 31x13x21cm | 31x13x20cm | 29x13x20cm | 29x13x19cm | 29x13x19cm | 28x11x17cm | |
Trademark | SONSCN/ OEM/ ODM | ||||||
Standard | CE,CCC | ||||||
ARC200 with color box
ARC180with suitcase
Packaging & Shipping
Machine protect with bulb bag and EPE
2m welding cable with dual-angle electrode holder
1.5m ground cable with clamp
Cable length can be customized according to your requirements
