Home > Products > MMA welding machine > pocket size portable igbt dc inverter welding equipment
pocket size portable igbt dc inverter welding equipment
- Ningbo/ Shanghai etc
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | SONSCN | Model Number | ARC200P | |
| Arc Current | 10-200A | Pulse Frequency | 60kHZ | |
| Pilot Arc Current | 16A | Rated Duty Cycle | 60@160A,35@200A | |
| Motor Type | Other, no motor | Dimensions | 31x13x21cm | |
| Usage | Metal welding | Voltage | 230 V or 110 V | |
| Power(W) | 6.8KW | Certification | CE, CCC | |
| Warranty | 1 year | After-sales Service Provided | Overseas service center available |
Product Description

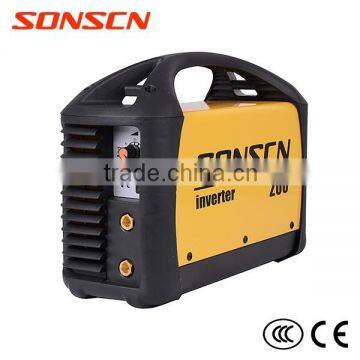

pocket size portable igbt dc inverter welding equipment
Product Description
welding equipment ARC200 has the following characteristics:
1.Adopt with advanced PWM and IGBT inverter technique.
2.High efficiency,energy saving,light,portable,stable arc,good welding pool,high no-load voltage,good capacity of force compensation.
3.smooth arc ,small spatter.
4.Used in wide area, field operation , inside and outside decoration,etc.
5.Compared with the same products of home and abroad,it is compact in volume,light in weight,easy to install and operate.
6. Stable performance after continuous welding working,it can balance automatic when the voltage is waving, auto-protection of over-voltage, over current, over-heat.
Technical data:
Model | ARC200 | Input voltage | 50/60hz(1ph) |
230V±10% | |||
Rated input current | Max.32A | No-load voltage | 80V |
Efficiency | 85% | Input power | Max.6.8kw |
Current range | 10-200A | Duty cycle | 35%@160A; 60%@120A |
Welding rod | 1.5-5mm | Weight | 4.6kgs |
Protection class | IP21 | Dimensions | 31*13*20cm |
Standard | CE,CCC | Trademark | OEM/SONSCN |
Packaging & Shipping
Machine protect with bulb bag and EPE
2m welding cable with dual-angle electrode holder
1.5m ground cable with clamp
Cable length can be customized according to your requirements
Generally, box or color boxes or plastic suitcase optional
Unit Includes |
Inverter Welder box carton |
or
Unit Includes |
Inverter Welder plastic suitcase (carrying case) carton |
