Home > Products > MMA welding machine > DC Inverter ARC welder

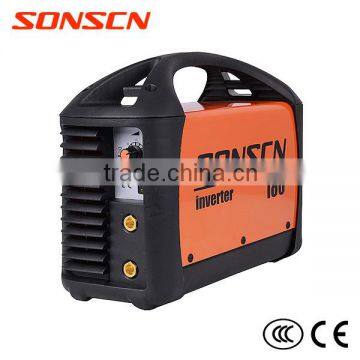

DC Inverter ARC welder
- Ningbo/Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | SONSCN | Model Number | ARC180P | |
| Arc Current | 15A | Pulse Frequency | 60Khz | |
| Pilot Arc Current | 15A | Rated Duty Cycle | 35%@180A; 60%@140A | |
| Motor Type | Other, No motor | Dimensions | 31x13x20cm | |
| Usage | Manual metal arc welding | Voltage | 230v | |
| Power(W) | 5.6kw | Certification | CE,CCC | |
| Warranty | 12 months, 12 months | After-sales Service Provided | Overseas service center available |
Product Description
DC Inverter ARC welder
Product Description
DC Inverter ARC welder has the following characteristics:
1. ARC initiation pulsation thermal arc initiation design, excellent arc initiation performance.
2. Unique output characteristics protection design, more suitable for filler wire.
3. Easy arc initiation, stable current and has no noise.
4. Protection for over voltage, over current and over heat. Safe and reliable.
5. Automatic voltage pulsation compensation capability.
6. Fast, small splash, do not stick to slip, excellent weld appearance.
7. Portable, easy to carry, suitable for DIY and family use.
Technical data:
Model | ARC180P | Input voltage | 50/60hz(1ph) |
230V±10% | |||
Rated input current | Max.26A | No-load voltage | 80V |
Efficiency | 85% | Input power | Max.5.6kw |
Current range | 10-180A | Duty cycle | 35%@160A; 60%@120A |
Welding rod | 1.5-4mm | Weight | 4.5kgs |
Protection class | IP21 | Dimensions | 31*13*20cm |
Standard | CE,CCC | Trademark | OEM/SONSCN |
Applications:
1. Suitable for carbon steel, stainless steel, alloy steels and others require
High quality weld applications.
2. Shipyards.
3. Electric power, petrochemical Constructions.
4. Maintenance shop.
5. Light and heavy industries.
6. Boiler pressure container manufacture.
1 pc/box 2boxes/carton size:38x33x31cm
2 # accessories: welding holder, welding cable, earth clamp, wire brush, welding mask
1 pc/suitcase 2suitcases/carton size: 48x 32x 41cm
Certificate:
