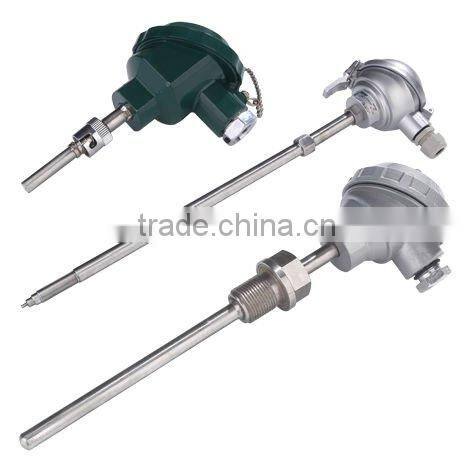

Explosion Proof Temperature Sensor
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Explosion Proof Temperature Sensor With PT100 Thermocouple
-
Rigid Temperature Transducer for Plastic Machinery
-
Flexible Temperature Transducer for High Temperature Medium
-
4-20ma Output PT100 Temperature Sensor
-
Temperature Sensor,temperature Transmitter
-
Vehicle Load Weighing Sensor on Board Truck Scales
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | WR-202 | Usage | Industrial | |
| Theory | Temperature Sensor | Temperature Range | -50- 400 Deg C |
Product Description
Specifications
Output:4-20mA / PT100-50-400 Deg C measurement range
Gas & liquid temperature measurement
Explosion proof temperature sensor
Flameproof & Explosion proof Temperature Transducers WR-202
Discription
WR-202 Card type thread mounted thermocouple/ resistance adopts thermocouple or resistance as the temperature measuring element,
It is normally matched with display, recording and regulating instrument, to measure the surface temperature (from -50 degree to 400 degree) of liquid, steam, gas and solid during various production process.
Application
It is used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food etc.
Specification
Name | explosion proof temperature sensor |
Model | WR-202 |
Temperature range | -50 to +400°C |
Output | 4-20mA |
Power supply | 10~30VDC |
error | 0.1%FS, 0.3%FS, 0.5%FS |
Media compatibility | 316L stainless steel |
Pressure connection | Thread M20, M18*1.5 optional |
Protection tube | Stainless steel 6mm and 8mm dia. |
Insert length (L) | 30mm <L<500mm |
Sensing element | J,K,E, PT100,CU50 temperature sensor |
Electrical connector | Water proof junction box |
Dimension
Order Guide : with "* "are required , with "---"is optional
Price, Package and Service
1, T/T, Western Union, MoneyGram
2, Any questions from you about our temperature sensor are welcome and will be replied in 24 hours.
3, all our temperature sensor are 7 days replacement and 12 months repair free of charge for quality problem.
4, All our temperature sensor will be fully checked by our QC.
5, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
6. Package: The goods will be put into the packing box with instructions and certificate of quality first.
