High performance static wireless wheel & axle-weighing system

Specifications

High performance static wireless wheel & axle-weighing system

Model: ZH101SW

Description

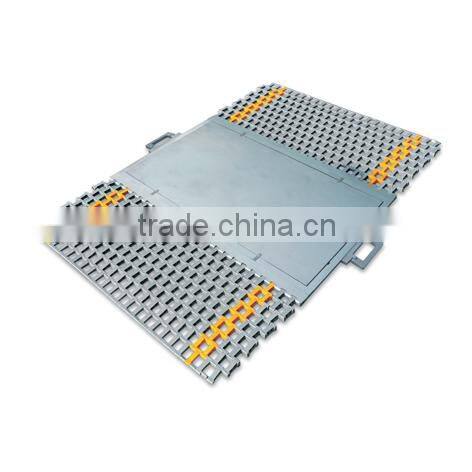

The high performance static wireless whieel&axle-weighing system use aluminum alloy material, mainly used for static vehicles axle weighing .it advantage is the pad thin, light weight, portable .Weighing pad adopts multiple sealing load sensors embedded into the structure of high strength aluminum alloy at the bottom of the weighing pad , it is high accuracy , good sealing effect. this products is widely used for farming, forestry, animal husbandry, mining, port, logistics center and other places of the required high weighing precision.

Feature

1. Digital wireless technology is adopted, so the portability is largely increased.
2. Ultra high frequency ensures better anti-electromagnet ability.
3. Double pads can be parallelly connected are used to measure axle wiehgt .
4. Display date and time, truck no and ticket no are manually input. Battery voltage monitor is indicated and alarm can be generated.
5. Measure and display vehicle velocity(km/h).
6. Floating technology is adopted to remove zero drift.
7. Numbered options.
8. Vehicle axle weight is measured axle by axle, and the max number is unlimited.
9. Wireless transmission removes cable connection.
10. Micro printer is embedded in the wireless instrument, the print ticket contains date, time, truck no, ticket no, axle weight, joint axle weight, truck weight, overload and executive organization.
11. RS232 port is used to communicate with PC.
12. Long life-span storage battery ensures long-time operation in field.
13. In static mode, customer and cargo no can be input.
14. Max stored records are up to 300, and can be expanded to 1000.

15. double LCD display

Application

1. weighing and load control of loading truck in road transportation, construction, agriculture, forestry, and dustbin disposal.
2. weighing of loading truck by executive enforcement units.
3. test weight and center of gravity of aero-plane.
4. weighing automobile wheel and axle load distribution in automobile production line.
5. stability test of special automobile, such as fork-lift truck, crane.

Main Technical Index

1. Wireless weigh padi:
i.dimension: 800×350×22mm
ii. weight: 28kg
iii. height: 22mm.

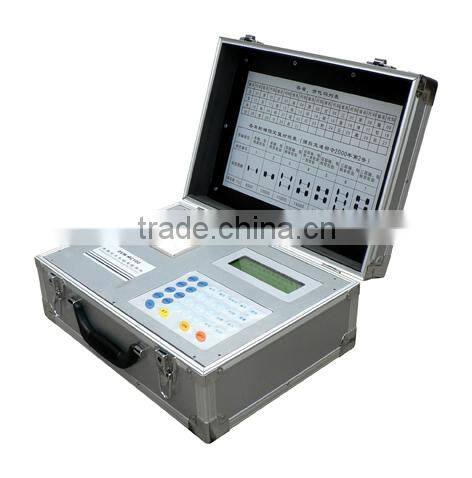

2. Wireless instrument:
a) dimension: 430×335×190mm
b) weight: 10kg
c) wheel weighing span: 0~20T
d) axle weighing span: 0~40T
e) total weighing span: 0~200T
f) axle weight display: 0~99995kg
g) total weight display: 0~999995kg
h) display unit height: 13mm
i. 128×64 dot matrix display, 16 pages of functional options
ii. 24 bit high-conversion ADC, conversion velocity is up to 1000/s
iii. analogue conversion division: 0.5uV
i) accuracyi. static( for reference)
1) ≤20%FS, ±0.3% F.S
2) >20%FS, ±0.5% F.S
ii. dynamic(<15km/h)
1) ≤20%FS, ±1% F.S
2) >20%FS, ±3% F.S
3. vehicle moving velocity: 0~15km/h
4. weighing pad power supply: 6V DC, 1A
5. operation temperature: -10℃~60℃
6. relative humidity: 90%
7. wireless transmission length
a) with no obstruction(at least): 35m
b) with obstruction(at least): 25m
