Portable Axle Weighing Pad Scales for Truck Weight
- Shanghai
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | ZH180H | Type | Axle Scale | |
| Power Supply | 10VDC | Display Type | None | |
| Rated Load | 24KG | Accuracy | 0.5% |
Product Description
Portable axle weighing pad scales for truck weight
Model: ZH180H
Description
Double layer structure is used in ZH180H. The bottom layer is made of aluminum alloy and top layer is made of stainless steel. So the deformation caused by overloa
ZHYQ has a strong R&D team with more than 10 staffs, there are 3 senior engineers, 5 intermediate engineers, in the major of mechatronics. They have successfully developed a lot of new and High-tech products, won a number of patents and awards.
d is effectively reduced. The length of slope is long up to 3.5 meters, so the dynamic accuracy can be less than 1%FS while the vehicle speed is less than 5km/h. With full sealed structure it can meet standard.
Specification
Rated load: | 30 t |
Rated output: | 1.0±0.1mv/v |
Repeatability: | 0.05%FS |
Error on corners: | 0.1%FS |
Zero balance: | ≤1%FS |
Static comprehensive error: | 0.2~0.5%FS |
Dynamic comprehensive error: | 1.5%FS(1~5km/h)/ 3~5%FS(5~10km/h) |
Ultimate overload: | 150%FS |
Non-linearity: | 0.2%FS |
Use temp.range: | -30~80°C |
Compensated temp.range: | -10~50°C |
Temp.effect on span: | 0.03%FS/10°C |
Temp.effect on zero: | 0.05%FS/10°C |
Output resistance: | 1200±5Ω |
Defend grade: | IP 68 |
Recommended voltage: | 10V |
Excitation voltage: | 9~15V |
Net weight: | 45kg |
Max load of 1/4 weigh bridge: | 10t |
Full load: | 30t |
Dimension of the surface: | 1000x500mm |
Insulation resistance: | ≥5000MΩ(100VDC) |
Remark: Four-core shielded cable is attached: φ5.8x20m | |

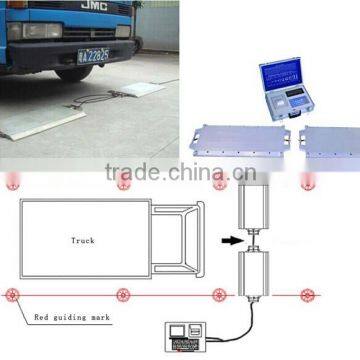

Application and installation
