Home > Products > Temperature Transducer > Explosion Proof Temperature Sensor Analog Output
Explosion Proof Temperature Sensor Analog Output
- Shanghai
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | WR-202 | Usage | Industrial | |
| Theory | Temperature Sensor | Temperature Range | -50- 400 Deg C temperature sensor analog output |
Product Description
Specifications
temperature sensor analog output1.Output:4-20mA
2.-50-400 Deg C measurement range
3.Explosion proof temperature sensor
Explosion proof temperature sensor analog output
Discription
Flame proof temperature sensor analog output WR-202 Card type thread mounted thermocouple/ resistance adopts thermocouple or resistance as the temperature measuring element,
It is normally matched with display, recording and regulating instrument, to measure the surface temperature (from -50 degree to 400 degree) of liquid, steam, gas and solid during various production process.
Application
This temperature transducer is used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food etc.
Specification
Model | WR-202 temperature sensor analog output |
Temperature range | -50 to +400°C |
Output | 4-20mA |
Power supply | 10 ~30VDC temperature sensor analog output |
error | 0.1%FS, 0.3%FS, 0.5%FS |
Media compatibility | 316L stainless steel temperature sensor analog output |
Pressure connection | Thread M20, M18*1.5 pt100 with 1/2npt |
Protection tube | Stainless steel 6mm and 8mm dia. |
Insert length (L) | 30mm <L<500mm temperature sensor analog output |
Sensing element | J, PT100 temperature sensor |
Electrical connector | Waterproof junction box |
Standard temperature thermocople
Material | Type | Range°C | Tolerance |
Ni/Ch-Ni/Si | K | 800-1200 | ±2.5 or±0.75%t |
Ni/Ch-Cu | E | 600-800 | ±2.5 or ±0.75%t |
Cu | T | 350-400 | ±2.5 or ±0.75%t |
Fe-Cu | J | 600-700 | ±2.5 or ±0.75%t |
Pt | PT100 | 0-600 | ±1 or ±0.75%t |
Cu | CU50 | -50~100 | ±2.5 or ±0.75%t |

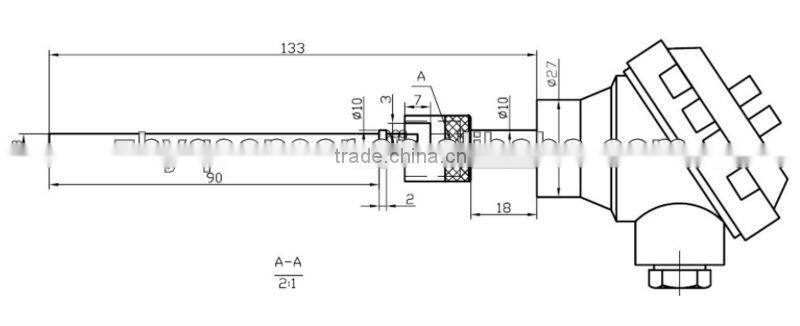

Dimension
Ordering Guide : with "* "are required , with "---"is optional
Price, Package and Service
1, ZHYQ is producing various temperature transdcuers for 15+ years
2. OEM is available and our price is more competitive
3, Any questions from your are welcome and will be replied in 24 hours.
4, 7 days replacement, 12 months free repair if it's the problem of product's quanlity.
5, All goods will be fully checked by our QC.
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
7. Package: The goods will be put into the packing box with instructions and certificate of quality first.
Our main products contains temperature transudcer, melt pressure transducers, melt pressure transmitters, Industrial pressure transmitter, melt pressure gauge, Homogenizer pressure gauges, automotive/air pressure sensors, Intelligent digital indicator, level transducer, temperature transducer, Rupture disk, and etc. more than 80 series and 500 models products.
Please feel free to contact with us, if there is anything we can do for you.
