Plastic Temperature Transducer
- Shanghai
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | ZHYQ | |
| Model Number | WR-200 | Usage | Industrial | |
| Theory | Temperature Sensor |
Product Description
Specifications
Plastic temperature transducer1.adopts excellent sensing elements2.fast response time
3.high pressure resistance
4.CE&ISO
Plastic temperature transducer
Description
WR-200 Series temperature transducer adopts excellent temperature sensing elements; consummate encapsulation technology and perfect assemble process to insure the quality and performance. This series has the advantage of fast thermal response time, strong thermal resistance capability, high pressure resistance, various temperature elements to choose, diverse forms of installation, etc.
Application
It is used for the temperature measuring and control in the erumpent processing of chemical fiber, rubber plastic, food process and etc.
Features
Type J, K, E,PT100 optional
0 to 1300°C measurement range
Immersion lengths to match applications
Spring or armor adjustable

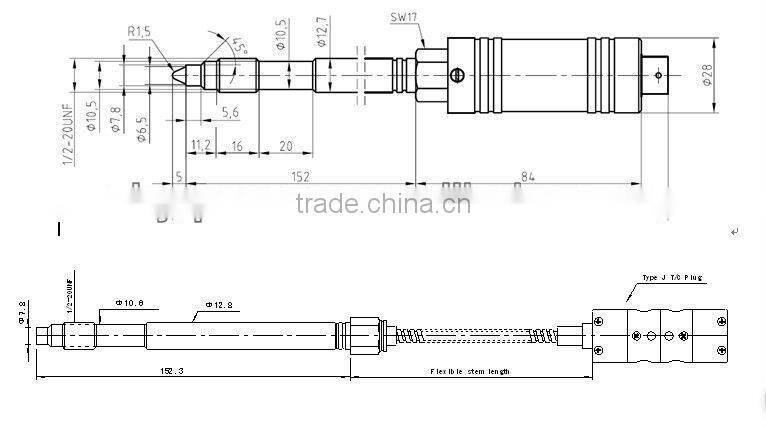

Dimension
Specification
Model | WR-200 |
Temperature range | 0 to 1300°C |
Output | 4-20mA optional |
Power supply | 10 ~30VDC |
error | 0.1%FS, 0.3%FS, 0.5%FS |
Media compatibility | 316L stainless steel |
Pressure connection | 1/2-20UNF, M14*1.5 |
Protection tube | Stainless steel 6mm and 8mm dia. |
Insert length | 6inch, 9inch |
Tip Length | 0mm , 5mm, 10mm, 15mm |
Sensing element | J, PT100 temperature sensor |
Electrical connector | 2PIN or PIN special connector |
FAQs
1. What's your MOQ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How long is the warranty?
We offer 12 months warranty for any quality problems of the product itself.
3. What terms of payment are available?
TT, Western Union and Money gram.
4. How about the usual delivery time?
We will send goods to you within 15 working days.
5. What detailed information do we need to provide if we want to purchase an order?
Pressure range, output, accuracy, pressure connection and other related parameters.
6. Does quantity affects price?
Of course. For larger quantities, we will give you some discount. But small quantities are also welcomed.
