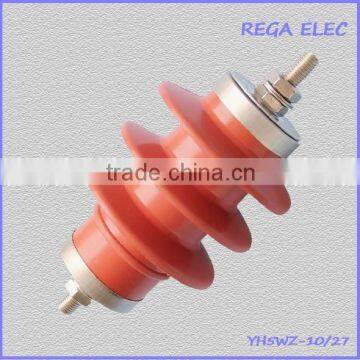

Distribution,Power Station Type surge arrester,YH5WZ-10/27,lightning arrster
- 20000 Piece / Pieces per Month
- Shanghai
- T/T D/P D/A Credit Card
You May Like
-
10kV Distribution,Power Station Type surge arrester,YH5WZ-10/27,polymer Metal Oxide surge protector
-
Distribution,Power Station Type surge arrester,YH5WZ-17/45,polymer lightning arrster
-
polymer surge arrster,Power Station Type surge arrester,YH5WS-17/50
-
polymer surge arrster,Power Station Type surge arrester,YH5WS-26/72
-
15kV Metal-oxide Surge Arrester,polymer lightning arrster,with varistor
-
LV Metal-oxide surge arrester,YH5W-9,voltage Suppressor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | REGA | |
| Model Number | YH5WZ-10/27 |
Product Description
Specifications
1.ISO9001 quality management system2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component
Distribution, Power Station Type Lightning Arrester Technical Parameters
Model: YH5WZ-10/27
Specification:
1)Rated voltage:6kV
2)Continuous working voltage:8kV
3)DC reference voltageNo less than:5KV
Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002
More Technical Parameters as below:
Any trial order in small quantity is welcomed.
Type |
Nominal System voltage |
Rated voltage |
MCOV |
Nominal discharge current |
D.C 1mA voltage |
30/60us switching current impulse |
8/20us lightning current impulse |
1/4us lightning current impulse | 2ms rectanglar current impulse withstand | 4/10us high current impulse withstand |
kV | kV | kV | kA | kV | kVp | kVp | kVp | A | kA | |
YH5WS-10/30 | 6 | 10 | 8.0 | 5 | 15 | 25.5 | 30 | 34.5 | 100 | 65 |
YH5WZ-10/27 | 6 | 10 | 8.0 | 5 | 14.4 | 23.0 | 27 | 31.0 | 150 | 65 |
YH5WS-17/50 | 10 | 17 | 13.6 | 5 | 25 | 42.5 | 50 | 57.5 | 100 | 65 |
YH5WZ-17/45 | 10 | 17 | 13.6 | 5 | 24 | 38.3 | 45 | 51.8 | 150 | 100 |
YH5WZ-51/134 | 35 | 51 | 40.8 | 5 | 74.0 | 114 | 134 | 154 | 300 | 100 |
Please contact us now if you have any questions or requirements.
