Product Details
| Place of Origin | Zhejiang, China | Brand Name | REGA | |
| Model Number | YH2.5W-4/9.5 |
Product Description
Distribution, Power Station Type Lightning Arrester Technical Parameters

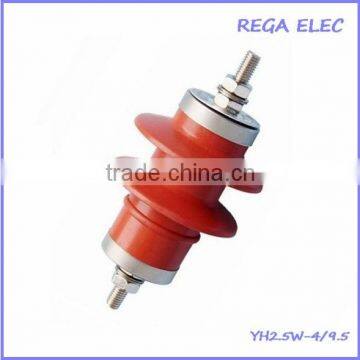

Model: YH2.5W-4/9.5
Specification:
1)Rated voltage:4kV
2)Continuous working voltage:3.2kV
3)DC reference voltageNo less than:2.5KV
Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002
More Technical Parameters as below:
Type |
Nominal System voltage |
Rated voltage |
MCOV |
Nominal discharge current |
D.C 1mA voltage |
30/60us switching current impulse |
8/20us lightning current impulse |
1/4us lightning current impulse | 2ms rectanglar current impulse withstand | 4/10us high current impulse withstand |
kV | kV | kV | kA | kV | kVp | kVp | kVp | A | kA | |
YH5WS-10/30 | 6 | 10 | 8.0 | 5 | 15 | 25.5 | 30 | 34.5 | 100 | 65 |
YH5WZ-10/27 | 6 | 10 | 8.0 | 5 | 14.4 | 23.0 | 27 | 31.0 | 150 | 65 |
YH5WZ-17/50 | 10 | 17 | 13.6 | 5 | 25 | 42.5 | 50 | 57.5 | 100 | 65 |
Any trial order in small quantity is welcomed.
Please contact us now if you have any questions or requirements.
