Home > Products > Surge arrester > YH1.5W-0.28/1.3 L.V. Surge Arrester,Power surge Protector,Surge Suppressor
YH1.5W-0.28/1.3 L.V. Surge Arrester,Power surge Protector,Surge Suppressor
USD $2 - $20
/ Piece
1000 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- Shanghai
- T/T D/P D/A Credit Card
You May Like
-
YH1.5W-0.28/1.3 L.V. Surge Arrester,Overvoltage Protector,Thunder Protection
-
Low voltage Surge Arrester,YH1.5W-0.28/1.3,Overvoltage Protector,Thunder Protection
-
6kV Metal-oxide Surge Arrester,voltage Suppressor,Surge Voltage Absorber
-
Thailand hot sale 6kV Metal-oxide Surge Arrester,Low voltage lightning arrester,Power solutions
-
Korea hot sale YH10W-6 Metal-oxide Surge Arrester,Low voltage lightning arrester,Power solutions
-
YH5WS-17/50,Distribution,Power Station Type surge arrester,Power solutions,Power Factor Correction
Product Details
| Place of Origin | Zhejiang, China | Brand Name | REGA | |
| Model Number | Model:YH1.5W-0.28/1.3 |
Product Description
Specifications
1.Passed ISO9001 and IEC60099-4 standard.2.The pass rate is up to 99.9%
3.OEM and sample is available.

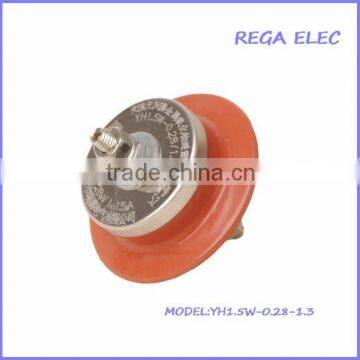

Metal -oxide surge arrester(Lightning arrster, polymer surge arrester)
Model: YH1.5W-0.28/1.3
Specification:
1)Rated voltage:0.28kV
2)Continuous working voltage:0.24kV
3)DC reference voltageNo less than:0.6KV
Manufacturing standard:
Chinese National Standard
Accord with Chinese national technical requirements GB 11032-2000 JB/T8952-2005, JB/T 10497-2005, DL/T815-2002
More Technical Parameters as below
Type |
Rated voltage |
MCOV |
Nominal discharge current | 8/20us lightning current impulse |
D.C 1mA voltage | 2ms rectanglar current impulse withstand |
Leaking current
|
kV | kV | kA | kVp | kV | A | uA | |
YH 1.5W-0.28/1.3 | 0.28 | 0.24 | 1.5 | 1.3 | 0.6 | 100 | 15 |
YH 1.5W-0.5/2.6 | 0.5 | 0.42 | 1.5 | 2.6 | 1.2 | 100 | 15 |
Any trial order in small quantity is welcomed.
Please contact us now if you have any questions or requirements.
