2013 hot sale Metal-oxide surge arrester,YH5W-9,surge arresterlipo laserdistributor
- 20000 Piece / Pieces per Month
- Shanghai
- T/T D/P D/A Credit Card
You May Like
-
Korea hot sale YH10W-6 Metal-oxide Surge Arrester,surge arresterlipo laserdistributor,Power solutions
-
21kV Metal-oxide Surge Arrester,Medium voltage lightning arrester,voltage Suppressor,Surge Voltage Absorber
-
Distribution,Power Station Type surge arrester,voltage Suppressor,Surge Voltage Absorber
-
Distribution,Power Station Type surge arrester,Medium voltage lightning arrester
-
Electric motor,Generator,Capacitor-type surge arrester,voltage Suppressor,Surge Voltage Absorber
-
Metal-Zinc Oxide Varistor For Lightning Arrester,Model RG3225
Product Details
| Place of Origin | Zhejiang, China | Brand Name | REGA | |
| Model Number | YH5W-9 |
Product Description
Specifications
1.ISO9001 quality management system2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component

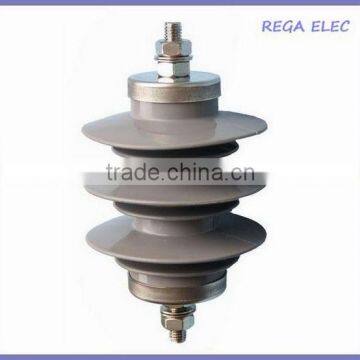

Metal-oxide surge arrester(Lightning arrster, polymer surge arrester)
Model:YH5W-9
Specifications:
1.ISO9001 quality management system
2.Own test laboratory
3.To provide the corresponding product components
4.The technical performance is accordding to IEC60099-4 and IEEE(ANSI)C62.11
Main Technical Parameter
Rated voltage r.m.s: 9kV
Nominal discharge current:5kA
Maximun continous operating voltage(Uc)(kV):7.65kV
Residual voltage at:
1/4μ s lightning current impulse residual voltage(kV):28.5(5kA)
8/20μ s lighting current impulse residual voltage(kV):25.9(5kA)
30/60μ s switching current impulse residual voltage(kV): 21.8(5kA)
Long duration current impulse withstand:
2ms rectangular current(A):100(5kA)
Operating duty:
4/10u s high current impulse(kA):65(5kA)
Creepage distance(mm):270mm
Dimension:240*200
Any trial order in small quantity is welcomed.
Type |
|
|
| Current with stand | Residual voltage |
|
H×B | |||
2ms | 4/10us | 30/60us
| 8/20us
| 1/4us
| ||||||
Rated voltage |
MCOV |
Nominal discharge current | 2ms rectanglar current impulse withstand | 4/10us high current impulse withstand | 30/60us switching current impulse | 8/20us lightning current impulse | 1/4us lightning current impulse |
Creepage distance |
Size | |
kV | kV | kA | A | kA | kVp | kVp | kVp | mm | mm | |
YH 5W-3 | 3 | 2.55 |
5 |
100 |
65 | 7.2 | 8.6 | 9.5 | 180 | 210×200 |
YH 5W-6 | 6 | 5.1 | 14.7 | 17.3 | 19.0 | 270 | 240×200 | |||
YH 5W-9 | 9 | 7.65 | 21.8 | 25.9 | 28.5 | 270 | 240×200 | |||
YH 5W-12 | 12 | 10.2 | 29.1 | 34.6 | 38.1 | 360 | 270×200 | |||
YH 5W-15 | 15 | 12.8 | 36.3 | 43.2 | 47.5 | 450 | 300×200 | |||
YH 5W-18 | 18 | 15.3 | 43.5 | 51.8 | 57.0 | 540 | 330×200 | |||
YH 5W-21 | 21 | 17.9 | 50.7 | 60.4 | 66.4 | 630 | 375×206 | |||
YH 5W-24 | 24 | 20.4 | 58.1 | 69.1 | 76.0 | 720 | 405×206 | |||
YH 5W-27 | 27 | 23 | 65.3 | 77.7 | 85.5 | 810 | 435×206 | |||
YH 5W-30 | 30 | 25.5 | 72.5 | 86.3 | 95.0 | 900 | 465×206 | |||
YH 5W-33 | 33 | 28.1 | 79.8 | 95.0 | 104.5 | 900 | 465×206 | |||
YH 5W-36 | 36 | 30.6 | 87.0 | 103.6 | 114.0 | 990 | 495×206 | |||
Please contact us now if you have any questions or requirements.
