MOV metal-Zinc Oxide Varistor For Lightning Arrester,customization is accepted

FOB Price

USD $0.5 - $1.5 / Piece

2000 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

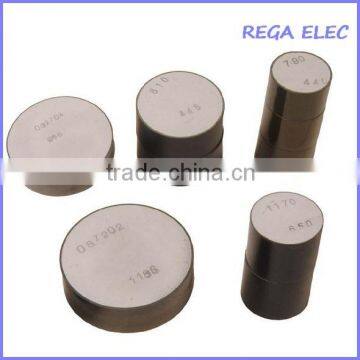

1. Metal oxide Varistor For surge arrester

2. Since 1983

3. ISO9001:2008

4. Good non-linear characteristics.

5. Full face metalized electrodes.

6. 100% production tested.

7. All ratings available,accept customized

Common use Zinc Oxide Varistor Technical Parameters

Type	Nominal discharge current	Potential gradient	Max.ratio of residual voltage	4/10us	2ms	Kct
	kA	V/mm	≤	kA	A	≤
35×3.5	2.5	220±10	1.9	10	100	/
30×25~31	5	225±10	1.85	65	100	1.05
32×25~31	5	225±10	1.85	65	100	1.05
35×25~31	5	225±10	1.85	65	150	1.05
40×25~31	10	220±10	1.83	100	250	1.03
42×25~25	10	220±10	1.83	100	250	1.03
48×25~25	10	215±10	1.8	100	400	1.03
56×21	10	210±10	1.75	100	600	1.02
72×21	10	205±5	1.68	100	800	1.02
85×21	20	200±5	1.65	100	1000	1.02
115×21	20	190±5	1.63	100	1500	1.02

Any trial order in small quantity is welcomed.

Please contact us now if you have any questions or requirements.
