Home > Products > Surge arrester > 9kV Metal-oxide Surge Arrester,surge protective device,Overvoltage Protector

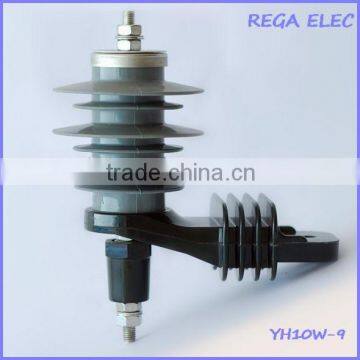

9kV Metal-oxide Surge Arrester,surge protective device,Overvoltage Protector

FOB Price

USD $3 - $50 / Piece

1000 Pieces(Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	REGA
Model Number	Model:YH10W-9

Product Description

Specifications

1.Passed ISO9001 and IEC60099-4 standard.
2.The pass rate is up to 99.9%
3.OEM and sample is available.

Metal -oxide surge arrester(Lightning arrster, polymer surge arrester)

Model:YH10W-6
Specifications:
1.ISO9001 quality management system
2.Own test laboratory
3.To provide the corresponding product components
4.The technical performance is accordding to IEC60099-4 and IEEE(ANSI)C62.11

Main Technical Parameter
Rated voltage r.m.s: 9kV
Nominal discharge current:10kA
Maximun continous operating voltage(Uc)(kV):7.65kV

Residual voltage at:
1/4μ s lightning current impulse residual voltage(kV):29.3
8/20μ s lighting current impulse residual voltage(kV):26.6
30/60μ s switching current impulse residual voltage(kV): 22.3

Long duration current impulse withstand:
2ms rectangular current(A):250

Operating duty:
4/10u s high current impulse(kA):100

Creepage distance(mm):400mm
Dimension:270*204mm

Any trial order in small quantity is welcomed.

Export-oriented Lightning Arrester Technical Parameters

Type

Rated voltage

MCOV

Nominal discharge current

2ms

rectanglar current impulse withstand

4/10us

high

current impulse withstand

30/60us switching current

impulse

8/20us

lightning current impulse

1/4us

lightning current impulse

Creepage distance

Size

kVp

YH 10W-3	3	2.55	10	250	110	7.5	8.9	9.8	200	210×204
YH 10W-6	6	5.1				14.9	17.7	19.5	300	240×204
YH 10W-9	9	7.65				22.3	26.6	29.3	300	240×204
YH 10W-12	12	10.2				29.8	35.5	39.1	400	270×204
YH 10W-15	15	12.8				37.2	44.3	48.7	500	300×204
YH 10W-18	18	15.3				44.7	53.2	58.5	600	330×204
YH 10W-21	21	17.9				52.2	62.1	68.3	700	375×211
YH 10W-24	24	20.4				59.6	71.0	78.1	800	405×211
YH 10W-27	27	23.0				67.0	79.8	87.8	900	435×211
YH 10W-30	30	25.5				74.5	88.7	97.6	1000	465×211
YH 10W-33	33	28.1				81.9	97.5	107.3	1000	465×211
YH 10W-36	36	30.6				89.4	106.4	117.0	1100	495×211

Please contact us now if you have any questions or requirements.
