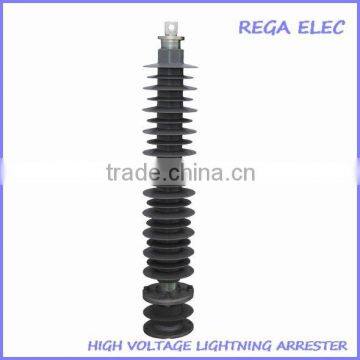

110kV&Above surge arrester,Surge protective Device,High-voltage Lightning Arrester
- 20000 Piece / Pieces per Month
- Shanghai
- T/T D/P D/A Credit Card
You May Like
-
YH10W-15 Metal-oxide Surge Arrester,polymer surge arrster
-
5kA15kV Metal-oxide Surge Arrester,polymer lightning arrster
-
YH5W-18 Metal-oxide Surge Arrester,polymer surge arrester
-
21kVMetal-oxide Surge Arrester,YH10W21 ,voltage Suppressor,lightning arrester
-
21kV Metal-oxide Surge Arrester,with varistor,voltage Suppressor
-
YH10W33kV Metal-oxide Surge Arrester,Power solutions,Power Factor Correction
Product Details
| Place of Origin | Zhejiang, China | Brand Name | REGA | |
| Model Number | YH10WZ-200/520 |
Product Description
Specifications
1.ISO9001 quality management system2.Own test laboratory
3.accordding to IEC60099-4 and IEEE(ANSI)C62.11
vide component
More Technical Parameters as below:
Type | Nominal system voltage |
Rated voltage |
MCOV | 8/20us lightning current impulse |
D.C 1mA voltage | 2ms rectanglar current impulse withstand |
Height |
kV | kV | kV | kVp | kV | A | mm | |
YH 10WZ-90/235 | 110 | 90 | 72.5 | 235 | 130 | 800 | 1345 |
YH 10WZ-96/250 | 110 | 96 | 75 | 250 | 140 | 800 | 1345 |
YH 10WZ-100/260 | 110 | 100 | 78 | 260 | 145 | 800 | 1345 |
YH 10WZ-102/266 | 110 | 102 | 79.6 | 266 | 148 | 800 | 1345 |
YH 10WZ-108/281 | 110 | 108 | 84 | 281 | 157 | 800 | 1345 |
YH 10WZ-192/500 | 220 | 192 | 150 | 500 | 280 | 800 | 2485 |
YH 10WZ-200/520 | 220 | 200 | 156 | 520 | 290 | 800 | 2485 |
YH 10WZ-204/532 | 220 | 204 | 159 | 532 | 296 | 800 | 2485 |
YH 10WZ-216/562 | 200 | 216 | 168.5 | 562 | 314 | 800 | 2485 |
Keywords
Lightning arrester,voltage Suppressor,Surge Voltage Absorber,Polymer Lightning Arrester,High-voltage Lightning Arrester,Surge Arrester,Surege Protector,Surge protective Device,Lightning Protector,Polymer Arrester,Thunder Protection,Power surge Protector,Surge Suppressor,Overvoltage Protector,Thunder Protection,Electrical Control,System Protector,circuit Breaker,Direct stirck Protection, Power solutions,Power Factor Correction. Lightning Surge Arrester
Any trial order in small quantity is welcomed.
More other type lightning arrester for choose
Please contact us now if you have any questions or requirements.
Contact Us
- Jiaxing Rega Electric Co., Ltd.
- Contact nameJack Yang Chat Now
- Phone86-573-83998019
- AddressNo.318 Xinnong Road,, Jiaxing, Zhejiang
