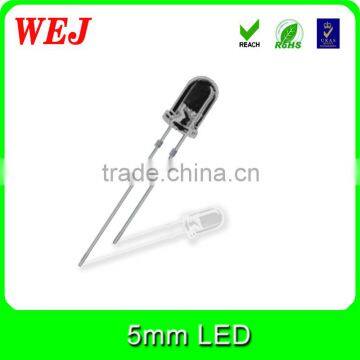

0.2W 1.6-1.8v 850nm ir 5mm Round Through Hole Dip Led
- SHENZHEN
- Credit Card
You May Like
Product Details
| Chip Material | InGaN | Emitting Color | Other, infrared | |
| Power | Other, 0.2w | Power Dissipation | 150 | |
| Operating Temperature(℃) | -25, 85 | Storage Temperature(℃) | -40, 100 | |
| Place of Origin | Guangdong, China | Brand Name | WEJ | |
| Certification | CE |
Product Description
Feature
| Parameter | Symbol | Value | Unit |
| Power dissipation | Pd | 150 | mW |
| Forward Current | If | 100 | mA |
| Peak Forward Current | Ifp | 1000 | mA |
| Reverse Voltage | Vr | 5 | V |
| Lead Solder Temperature | Tsol | 260 for 5sec | ℃ |
| Parameter | Symbol | Condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| Forward voltage | Vf | If=100mA | --- | 1.6 | 1.8 | V |
| Radiant Intensity | Ie | If=100mA | 90 | 110 | --- | mW/Sr |
| Peak wavelength | λp | If=100mA | --- | 850 | --- | nm |
| Reverse current | Ir | Vr=5V | --- | --- | 50 | μA |

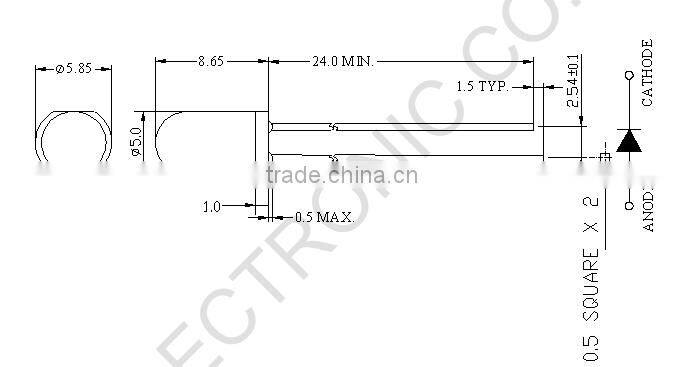

Dimension of 5mm 850nm ir round dip
Note:
1. All dimensions are in millimeters (mm);
2. X.X is +/-0.1mm,X.XX is +/- 0.05mm unless otherwise noted;
3. The device has a single mounting surface, the device must be mounted according to the specifications.
packaging
packaging details:500pcs/bag, anti-static electricity

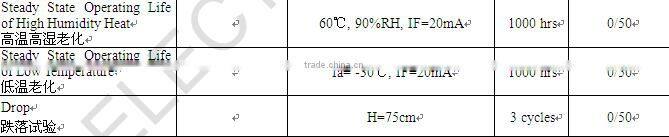

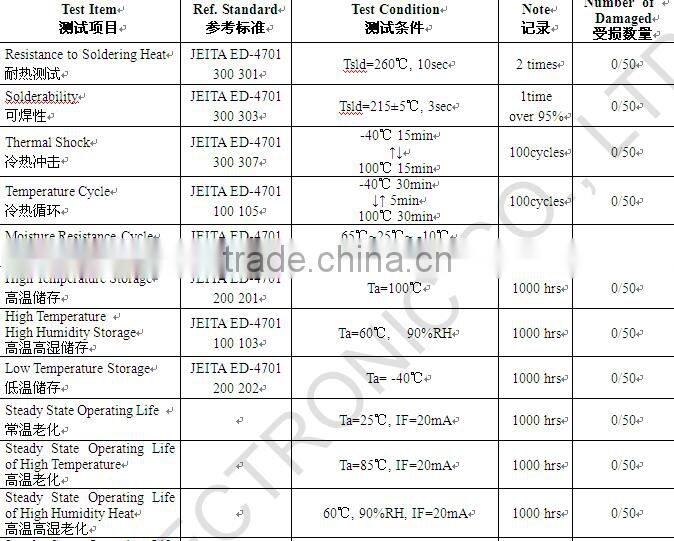

Reliability Test Items and Conditions
Shipping of 5mm 850nm ir round dip
Certification

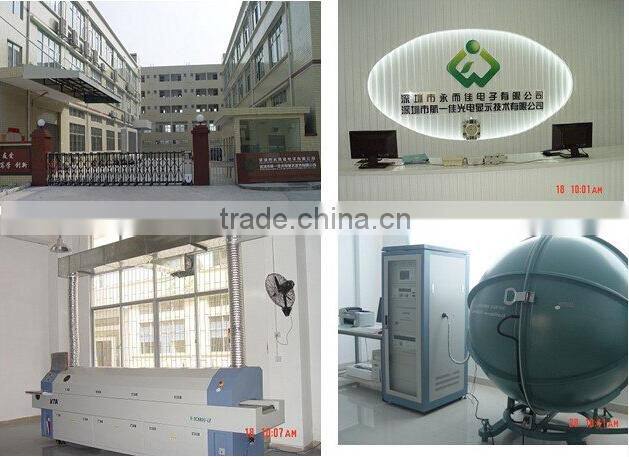

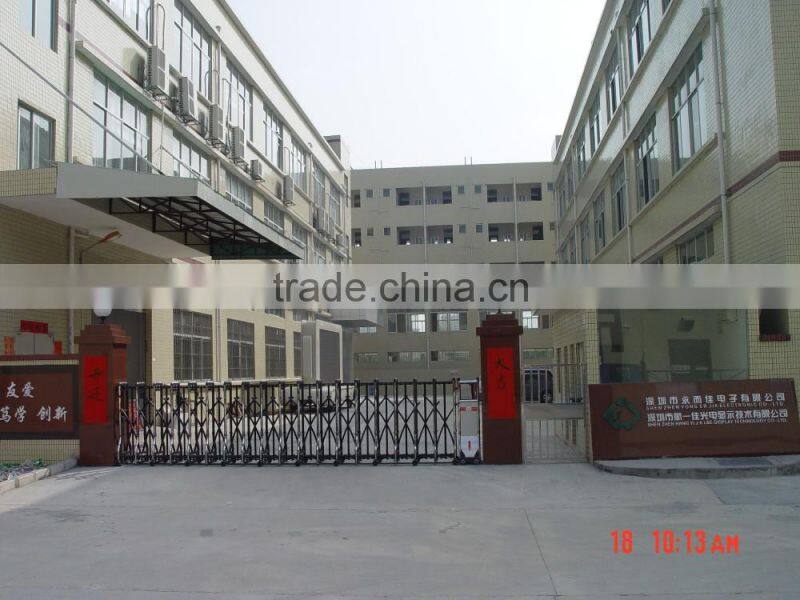

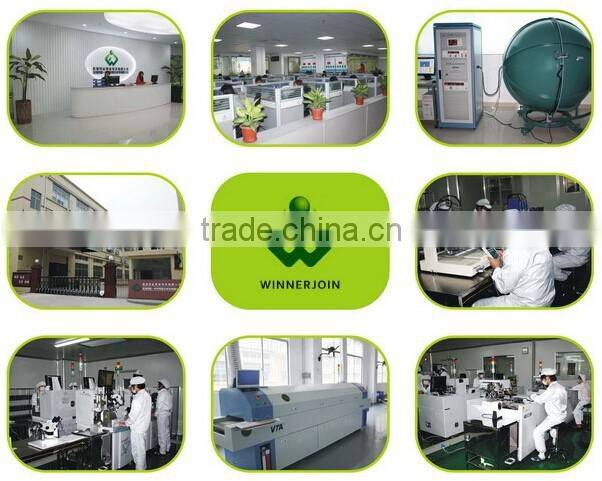

Our Factory
We have over 20 years experiece on leds.
we have professional team.
we supply the most superior service.
