Home > Products > DIP LED > Hot Sale 5mm Round Blue Dip LED

Hot Sale 5mm Round Blue Dip LED

FOB Price

US$ 0.02 - 0.03 / Piece

20000 Pieces(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	WEJ	Model Number	WEJ504BW-EA8
Type	LED	Package Type	Through Hole
Max. Forward Voltage	3.6v	Max. Reverse Voltage	5v
Max. Forward Current	30mA	Max. Reverse Current	10uA

Product Description

Specifications

Hot sale 5mm round blue dip LED

Available shape	Round led, oval led, straw hat led, helmet led, square led, flat top led, concave led, rectangle led
Available colors	Red, green, yellow, blue, orange, Y-green, white, warm white, cool white, Bi-color, rgb ect
Available angle	15, 20, 25, 30, 40, 60, 70,80, 90, 100,120, 150,160 degree
Available size	3mm, 5mm, 8mm, 10mm

Product Description

Product Advantages

1. Top quality raw materials used

2. Super luminous efficiency

3. Low brightness decay

4. High quality with RoHS , Reach certifications

5. 99.99% purity golden wire used

6. Packaging: Moisture proof, dust free, anti-static

Application

Traffic light, Electronic and electronic appliance, electronic toy, decorative light, etc

Absolute Maximum Ratings at Ta=25°C

Parameter	Symbol	Value	Unit
Power dissipation	Pd	120	mW
DC Forward Current	If	30	mA
Peak Forward Current⁽¹⁾	Ifp	100	mA
Operating Temperature	Topr	-25to+85	°C
Storage Temperature	Tstg	-40to+100	°C
Lead Solder Temperature⁽²⁾	Tsol	260 for 5sec	°C

Notes:

1. 1/10 duty cycle, 0.1 ms pulse width;

2. 2mmbelow package base.

Electrical/Optical Characteristics Ta=25°C

Parameter	Symbol	Condition	Value			Unit
Parameter	Symbol	Condition	Min.	Typ.	Max.	Unit
Forward voltage	Vf	If=20mA	---	3.0	3.6	V
Luminous intensity	Iv	If=20mA	210	350	---	mcd
Dominant wavelength	λd	If=20mA	470	475	480	nm
Peak wavelength	λp	If=20mA	---	470	---	nm
Reverse current	Ir	Vr=5V	---	---	10	μA

Notes:

1. Forward Voltage:±0.1V;

2. Color temperature: ±5%;

3. Luminous intensity: ±10%.

Other Available Products

1. 5050,3528,2835,5054 SMD LED

2. 1w/3w high power series

3. Small/big LED digit Series

Company Information

WEJ Advantages

1. Experienced R&D team

2. Professional production process

3. Free samples support
4. Short lead time

5. Customized will be welcomed
6. Small order will be acceptable

Our Team

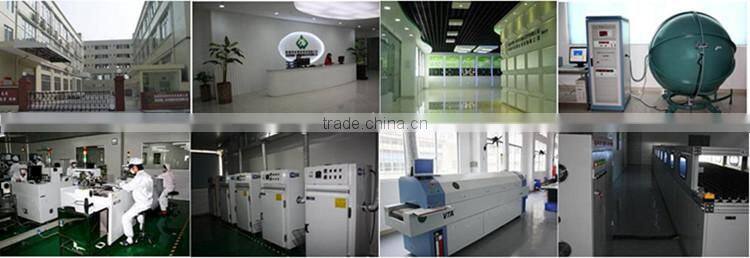

Production Base
