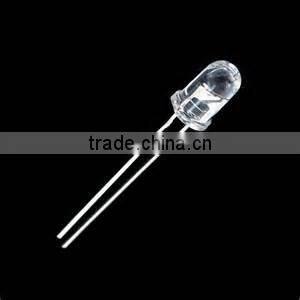

Shenzhen LED DIP LED Cool White 7000-1000K 0.1w 5mm White LED Price
US$ 0.025 - 0.029
/ Piece
20000 Pieces(Min. Order)
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
Through Hole Package Type and DIP LED Diodes 3mm Red Blue Bicolor LED Common Cathode
-
Through Hole Package Type and LED Type Led 5mm LED With 850nm IR LED
-
Led Rgb 5mm Commond Anode Led 4 Pin Diode
-
High Quality 5mm Round Red Emitting Led Diode 640nm/ 660nm RoSH Compliant
-
3mm Round Pure Green Diffused Dip LED
-
5mm R&G&B Commond Anode Led 4pins Diodes
Product Details
| Model Number | WEJ50BWC-2J2-W | Chip Material | InGaN | |
| Emitting Color | Cool White | Luminous Intensity | 5500mcd | |
| Power | 0.1W | Color Rendering Index(Ra) | 75 | |
| Color Temperature | 6000-7500K | Operating Temperature(℃) | -25, +85 | |
| Storage Temperature(℃) | -40, +100 | Place of Origin | Guangdong, China | |
| Brand Name | WEJ | Certification | CE |
Product Description
Specifications
5mm white LED Price1.20mA,Vf:3.0-3.4V
2.Luminous intensity:5000mcd
3.Cool white:7000-1000K
4.ISO9001,CE,RoHS,2yrs warranty
Shenzhen LED DIP LED cool white 7000-1000K 0.1w 5mm white LED Price
Product Description
Electrical/Optical Characterisiecs Ta=25 ℃
| Parameter | Symbol | Condition | Value | Unit | ||
| Min | Typ | Max | ||||
| Forward voltage | Vf | If=20mA | 3 | 3.2 | 3.4 | V |
| Luminous intensity | Iv | If=20mA | 4000 | 5500 | 7000 | mcd |
| Chromaticity coordinate | X | If=20mA | --- | 0.31 | --- | |
| Y | If=20mA | --- | 0.32 | --- | ||
| Color Temperature | Tc | If=20mA | 6000 | 6500 | 7500 | K |
| Color rendering index | Ra | If=20mA | --- | 76 | --- | % |
Absolute Maximum Ratings at Ta=25 ℃
| Parameter | Symbol | Value | Unit |
| Power dissipation | Pd | 120 | Mw |
| Forward Current | IF | 30 | mA |
| Peak Forward Current | Ifp | 100 | mA |
| Reverse Voltage | VR | 5 | V |
| Electro-Static-Discharge | ESD | 1000 | V |
| Operating Temperature | Topr | -25 to +85 | ℃ |
| Storage Temperature | Tstg | -40 to +100 | ℃ |
| Lead Solder Temperature | Tsol | 260 | ℃ |
Packaging & Shipping
MPQ:1000pcs per bag,
Package: 1000pcs per bag, 60bags per carton. Carton size:56*29*31cm,GW/CTN:13.9kg
Production lead time: 2-3 working days for sample, 7-14 working days for mass order.
Our Services
1. Experienced R&D team,customized service is welcome.
2. Professional production process
3. Free samples support
4. Short lead time
5. Small order is acceptable.
