615-630nm Green 5mm High Brightness Led Diode
- Shenzhen
- T/T Credit Card
You May Like
-
High Quality Red and Yellowgreen Bi-color Common Anode Led 3mm
-
High Quality 5mm Round LED Red Color Led Diode 665nm Led Grow RoHS Compliant
-
High Quality Led 5mm Round Red Emitting Led Diode 650nm/660nm Led Grow RoHS Compliant
-
Shenzhen LED DIP LED Cool White 7000-1000K 0.1w 5mm White LED Price
-
Through Hole Package Type and DIP LED Diodes 3mm Red Blue Bicolor LED Common Cathode
-
Through Hole Package Type and LED Type Led 5mm LED With 850nm IR LED
Product Details
| Model Number | WEJ504GC-8K4 | Chip Material | InGaN | |
| Emitting Color | Green | Luminous Intensity | 18000 | |
| Power | 0.1W | Operating Temperature(℃) | -25, 85 | |
| Storage Temperature(℃) | -40, 100 | Place of Origin | Guangdong, China | |
| Brand Name | WEJ | Certification | CE |
Product Description
Specifications

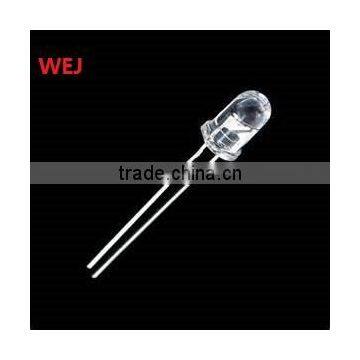

5mm high brightness led diode1. 5mm Round LED diode
2. If=20mA,Vf: 3.0-3.4V
3. Brightness:18000mcd,WD: 515-530nm
4. CE,RoHS
615-630nm Green 5mm high brightness led diode
Electrical characteristics data sheet
Selection Guide:
| Part No. | Emitted Color | Resin color | Viewing Angle |
| WEJ504GC-8K4 | Green | Water Clear | 15degree |
Absolute Maximum Ratings at Ta=25 ℃
| Parameter | Symbol | Value | Unit |
| Power dissipation | Pd | 120 | mW |
| DC Forward Current | If | 30 | mA |
| Peak Forward Current | Ifp | 100 | mA |
| Reverse Voltage | Vr | 5 | V |
| Electro-Static-Discharge | ESD | 2000 | V |
| Operating Tempeature | Topr | -25 to +85 | ℃ |
| Storage Temprature | Tstg | -40 to +100 | ℃ |
| Lead Solder Temperature | Tsol | 260 for 5sec | ℃ |
Notes:
1. 1/10 duty cycle, 0.1 ms pulse widt;
2. 2mm below package base.
Electrical/Optical Characteristics Ta=25 ℃
| Parameter | Symbol | Condition | Value | Unit | ||
| Min. | Typ. | Max. | ||||
| Forward voltage | Vf | If=20mA | --- | 3.0 | 3.4 | V |
| Luminous intensity | Iv | If=20mA | 11000 | 18000 | --- | mcd |
| Dominant wavelength | λd | If=20mA | 515 | 520 | 530 | nm |
| Peak wavelength | λp | If=20mA | --- | 525 | --- | nm |
| Reverse current | Ir | Vr=5V | --- | --- | 10 | µA |
Notes:
1. Forward Voltage: ± 0.1V
2. Wavelength: ± 1.5nm
3. Luminous Intensity: ± 10%

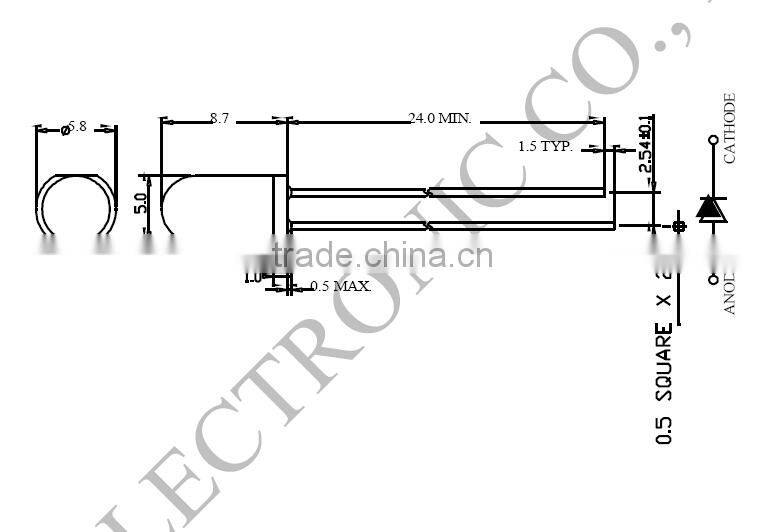

Package outline dimensions:
Notes:
1. All dimensions are in millimeters;
2. Tolerance is ±0.25mm unless otherwise noted;
3. Lead spacing is measured where the leads emerge from the package;
4. Speciications are subject o change without notice.
| Product | MPQ | Quantity/carton | GW/carton | Carton size |
| 5mm high brightness LED diode | 500pcs/bag | 40000pcs | 24kg | 56*29*31cm |
Shipment:
*By international express:DHL,FedEx,UPS,TNT,EMS all available
*By air fromShenzhen or HongKong airport
*By sea from Shenzhen or HongKong port.
1. Strong R&D team, customized service is welcome
2. Free sample support, small order acceptable.
3. 2 years quality gurantee, free replacement.
