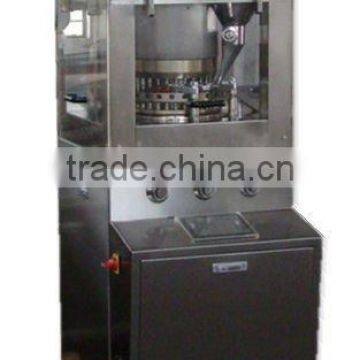

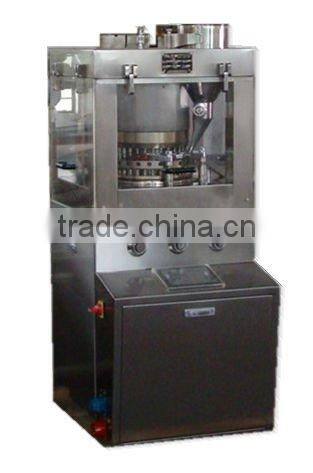

ZP-265 Rotary Tablet Press

Specifications

1. The outside part of the machine is fully enclosed.
2. It meets the GMP requirement.
3.Touching type operation push-button.

1. Description

A small-sized automatic continuous rotary table-type tablet press, this machine is mainly used in the tablet production in R & D centers of pharmaceutical factories, laboratories in colleges and universities, medicine research institutes, hospitals, pharmacies, etc. The machine is also applicable to foodstuff, electric cell, chemical and ceramic industries to press the granular material into tablets.

The machine is suitable to the granular materials that contain less 10% of powder (over 100 mesh). It is not applicable for semi-solid, damp, moisture-absorptive and non-granular materials with low melting point.

The machine is applicable for pressing of 4 – 22 mm round, letter-engraved or shaped tablets.

2. Features

1. The machine is a single-press type. The outside part of the machine is

fully enclosed. It meets the GMP requirement.

2. Install pre-pressure and main pressure.

3. Main shaft drives and the speed is adjusted by Frequency Conversion.

4. Advanced turbine retard.

5. There are thrust shaft and lubricate shaft on turret.

6. Numerical show

A. Show present main pressure (Max. pressure 60 KN)

B. Show present tablet thickness

C. Show present filling

D. Show present pre-pressure roller position

E. Show present pressure of exit tablets (Max. 10 KN)

F. Show present speed of turret

7. Touching type operation push-button

8. Protecting and reporting function

A. Protecting and reporting for motor breakdown

B. Protecting and reporting for exceed pressure

C. Protecting and reporting for loading and unloading lower punches

D. Emergency stopping function

3. Main Technical Data:
