Home > Products > New Products > ZP11 Rotary Tablet Press

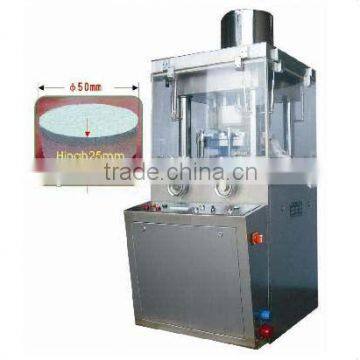

ZP11 Rotary Tablet Press
- 20 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
Condition | New | Brand Name | SPM | |
Type | Rotary Tablet Press | Max. Pressure(KN) | 100KN | |
Weight | 1200Kg | Dimension(L*W*H) | 910*1120*1650 | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Quick Details
Condition: | Production Capacity (pcs/hour): | 7920 | |
Type: | Max. Pressure(KN): | ||
Net Weight(kg): | 1200 | Power(kW): | 5 |
Place of Origin: | China (Mainland) |
Packaging & Delivery
Packaging Details: | wooden case packing for export |
Delivery Detail: | 30 days |
Application:
Rotary Tablet Press Model ZP11 is used in electronic industry, food industry, and chemical industry.daily use industry and pharmaceutical industry, for pressing various granular raw materials into special shaped tablets. For example: electronic element,camphor ball,fertilizer,catalyst and powder matallurgy.
Main Technical Paramater:
Dies(sets) | 11 |
Max.Dia. of Table(mm) | Chunk 32*32/ Round 45/Circle 45*20 |
Max.Pressure(KN) | 100 |
Max.Depth of Filling(mm) | 45 |
Turret Speed(r/min) | 6-12 |
Max.Capacity(pcs/hour) | 7920 |
Motor Power(kw) | 5 |
Overall Size(mm) | 910*1120*1650 |
Net Weight(Kg) | 1200 |
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
Projects
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
Contact us
ADD: No. 538,Longgao Road, Jiufu Developing Area, Jiuting, Songjiang District, Shanghai, China.
PC:201615
Tel: 0086 21 33522115, 33522116, 33522127
Fax: 0086 21 33522135
Web: or
Contact Us
- Shanghai Pharmaceutical Machinery Co., Ltd.
- Contact nameLucy Bian Chat Now
- Phone86-21-33522116
- AddressNo. 538, Longgao Road, Jiuting Town
