Home > Products > New Products > ZPM500 Series High Speed Rotary Tablet Press

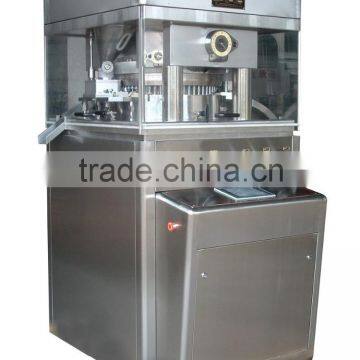

ZPM500 Series High Speed Rotary Tablet Press

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 5 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	SPM
Type	Rotary Tablet Press	Weight	2500kg
Dimension(LWH)	95013001850	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Quick Details

Condition:	New	Place of Origin:	Jiangsu, China (Mainland)	Brand Name:	Quanta ZPM500 series high speed rotary tablet press machine
Model Number:	ZPM500 series high speed rotary tablet press machine	Type:	Rotary Tablet Press	Production Capacity:	330000pcs/h
Max. Pressure(KN):	100KN	Max. Tablet Thickness(mm):	20mm	Max. Tablet Diameter(mm):	25mm
Voltage:	220V 380V according to customer's voltage	Power(W):	5.5KW/7.5KW	Weight:	2500KG
Dimension(LWH):	95013001850mm	Certification:	CE SGS ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas
Product name:	ZPM500 series high speed rotary tablet press machine

Packaging & Delivery

Packaging Details:	The package of ZPM500 series high speed rotary tablet press machine: standard export wooden case
Delivery Detail:	30 days after order confirm rotary tablet press

Application:

This machine is one kind of tablet press machines, of granular materials into tablets.

It is mainly used to press hard-forming materials into tablet in pharmaceutical industry and also the chemical, food, electronic industries.

Feature:

1. This machine adopts a fully enclosed structure with the operation compartment isolated compartment isolated from the outside. Ensuring the cleanness in the tablet compressing area without creation of cross contamination with the outside. The compressing compartment is wholly made of stainless steel, which is in compliance with the GMP requirement on the production of pharmaceuticals.

2. The surface of turret is with chrome playing to avoid the wearing of turret.

3. The machine adopts the adjustment of speed by means of frequency inversion. The motor is connected with under plate the to avoid the motor shaking whe working.

4. Fully automatic lubrication system with interval type, micro flow and quantitative, to lubricate the upper&lower tracks and the heads of punches and reduce the wearing of these parts.

5. Different kinds of impellers for force feeder, to meet the feeding requirement of different raw materials.

Main Technical Parameter:

Punches Dies(sets)	35	43	51	55
Model of P/D(mm)	IPT25.4	IPT25.4	IPT19	IPT19
Outer diameter of middle die (mm)	38.1	30.16	24	22
Max.Pre-pressure(KN)	18	18	18	18
Max.main pressure(KN)	100	100	80	80
Max.diameter of tablets (mm)	25	18	13	11
Max.filling depth (mm)	20	18	15	15
Max.rotating speed of turret (r/min)	25	40	45	50
duction capacity (pcs/h)	105,000	206,000	275,000	330,000
Main motor	7.5kw/1430r/min/380v/50Hz		5.5kw/1430r/min/380v/50Hz
Overall Size (LWH)(mm)	95013001850
Net weight(kg)	2500
