Home > Products > Tablet Press Machine > ZPT-21 Rotary Tablet Press

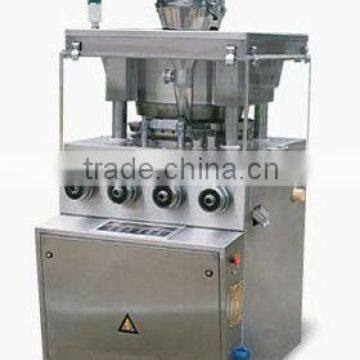

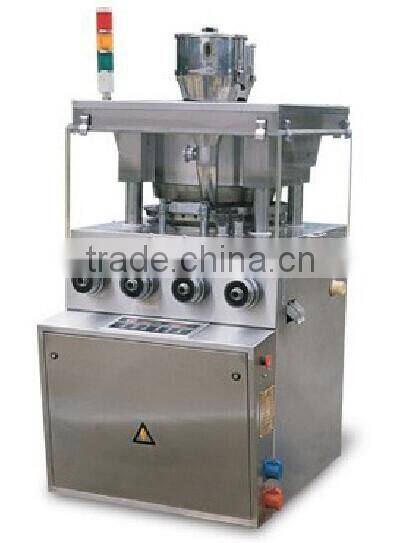

ZPT-21 Rotary Tablet Press
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | SPM | Model Number | ZPT 21 | |
| Type | Rotary Tablet Press | Production Capacity | 6000-700000 tablets per hour | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
We have many kind of tablet press and dies, please tell me your requirement, we will supply the best quality and price machine!
We can supply a complete set according to the users' requirements.
Specifications
Main Application:
This machine is the latest equipment developed by our company for tablet press of charcoal industry. It’s also applicable for chemical, food and other industries.
Characteristics:
1. This machine is particularly applicable for the pressing of large diameter and large filling amount tablets.
2. The specially designed forced feeder could press pure powder materials like charcoal powder with light weight and small density.
3. The specially designed auxiliary equipment could realize automatic feeding and automatic tablet discharging.
4. The human-based design enables easier cleaning and maintenance.
5. The drive system is sealed in the worm gear case at the bottom of the host machine, which is a completely isolated independent part. This configuration could avoid mutual contamination between the machine and the drive system and could fully lubricate the drive system and could reduce noise and wearing.
6. The special installation structure enables the replacement and repairing of the under punching guide track and the under roller fast and convenient.
Technical Specifications:
Model | ZPT21 |
Dies (pair) | 21 |
Max. tablet pressing force (kN) | 100 |
Max. tablet pressing diameter (mm) | 40 |
Max. filling depth (mm) | 30 |
Max. tablet pressing thickness (mm) | 14 |
Max. production capacity (10000 tablets/hour) | 5 |
Dimensions (mm) | 1100×940×1800 |
Motor (kW) | 7.5 |
Host machine weight (kg) | 1800 |
