WDJ-320B Tablet and Capsule Inspecting Machine
- Shanghai capsule Inspecting machine
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | SPM inspecting machine | |
| Model Number | WDJ-320B inspecting machine | Application | Capsule | |
| Type | Other, inspecting machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Capsule Inspecting MachineSuitable for tablet, soft and hard capsule
Vacuum nozzle
Meet GMP

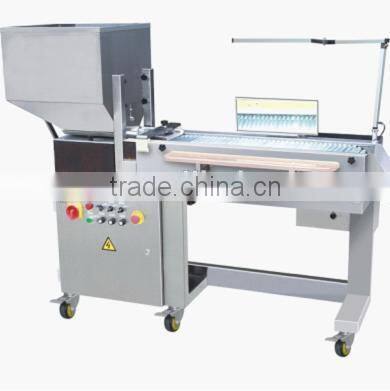

WDJ-320B Tablet and Capsule Inspecting Machine
Main Application :
The product flows from the feed hopper into a vibratory chute where a perforated screen eliminates coarse dust and chips which are then collected in a collecting container.

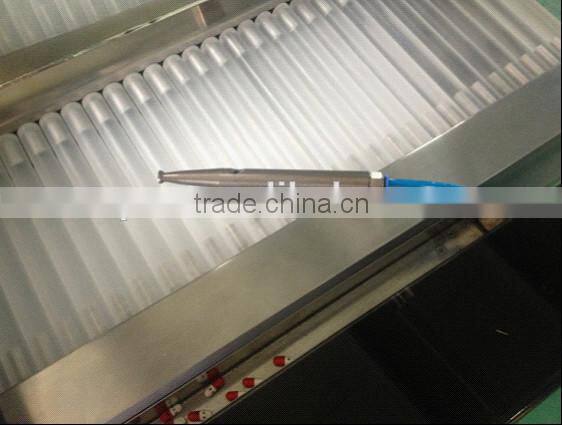

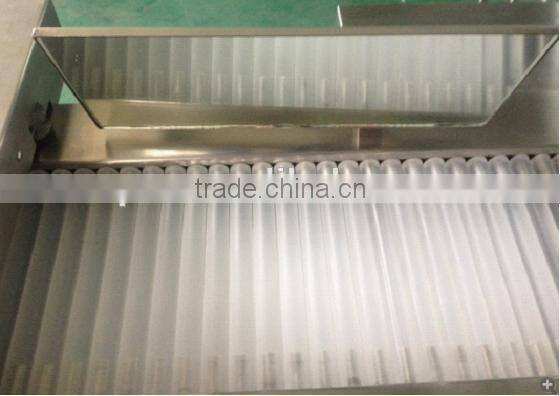

The product enters the inspection stage in a single layer. The capsules and tablets are placed on rotating rollers and are continuously turned in front of the operator which ensures a reliable all-sided inspection. An adjustable mirror enables the operator to examine the far side of the product. Optionally the rotation speed of the inspection rollers is adjustable with a separate drive unit (refer to roller speed adjustment), independent of the inspection speed (refer to conveying speed adjustment).

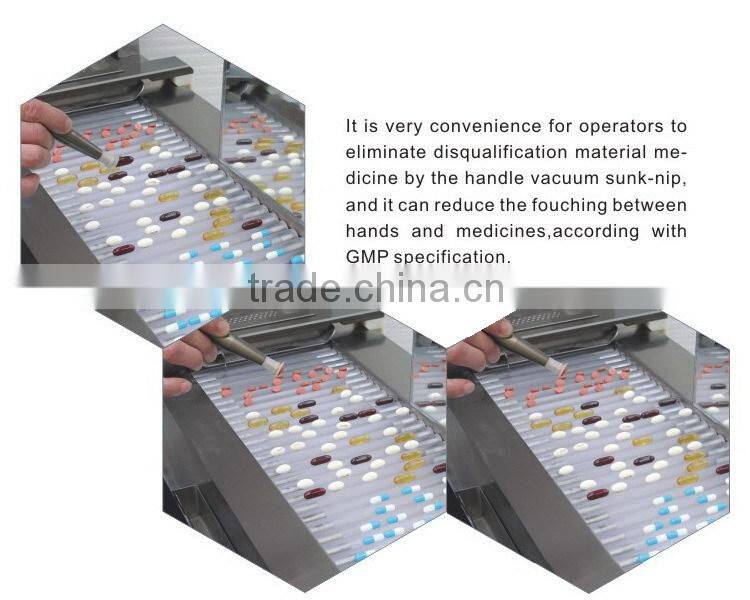

Once the operator find defective tablets and capsules, the operator can use a flexible hand-held vacuum nozzle to remove it. If there are lots of defective products appears all together in a short time, the operator can step on foot-pedal switch to stop conveying, and then use hand-held vacuum nozzle to remove them one by one. Once the operator step on foot-pedal switch, the conveying is stopped, while the rollers are still rotating.
WDJ-320B inspecting machine is a new product researched by our company on the basis of
integration of domestic and foreign advanced technologies in order to meet the needsof pharmaceutical sector. It can test outlook quality for hard capsules,soft capsulesand tablets.
Main Technical Data:
Capacity:Max. 120000Pcs Tablets(Capsules)/h
Power:0.6KW; 220V/50HZ Single phase or 110V/60HZ Single phase
Compressed air pressure:6bar
Weight: 125KG
Size:1400×650×1250mm,
