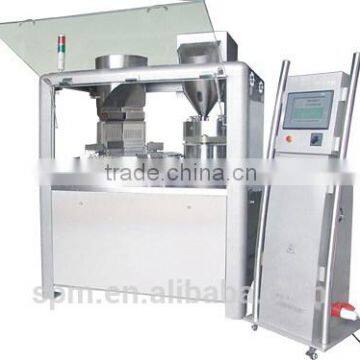

Full Automatic Capsule Filling Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Capacity	210,000 capsules/hour	Control Mode	Full Automatic
Place of Origin	Shanghai, China	Brand Name	SPM capsule machine
Model Number	NJP-3500C capsule machine	Dimension(LWH)	117015602000mm capsule machine
Weight	2200kg capsule machine	Warranty	one year for capsule machine

Product Description

Specifications

Automatic capsule machine is used in full-closed design and made of SS 316L material, Product capacity 3500 granule/min

Capsule Filling Machine Main Performance:

Output	3500 granule/min
No.of segment bores	25
Suitable for capsule	00#-4#
Total power	10.5kw
Overall weight	2200kg
Overall dimensions	1170×1560×2000mm

Features:

1) Automatic capsule machine is used in full-closed design, all parts contracting with medicine powders and capsules are used in No. 316L etc. Good quality of stainless steel material. Furthermore, the subject of takedown and washing as well as precision of equipment die with difficult adjustment have been solved.

2) It is used in cam with lower device design, equipped with pressure atomized oil pump to keep cam groove lubricating fully, reduce abrasion to make the parts delay its life.

3) Over large Measuring Plate is designed, improve powder-flow in the Measuring Plate, make powder into Measuring Plate full as standard.

4) It is selected with overlarge cam sub-mechanism to make die turn tablet as well as the whole machine work normally, it can ensure the transmission of the machine working normally and the filling accurately.

5) It is used in capsule vacuum locating mechanism to make capsule making rate reaching over 99 percent.

6) Active cam swinging block is used in double bearing frame, oblique plane
measuring plate adjusted can ensure the filling stability and accuracy fully.

7) The former conversion of frequency Hz has been changed, it is used in digital
mechanism per minute for granule. Currently it is a leading guider in the same
field.
