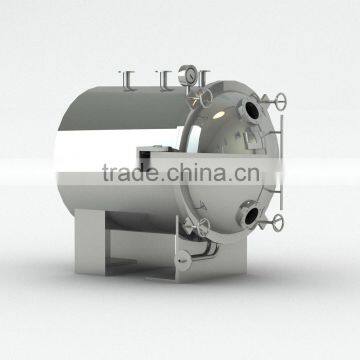

YZG, FZG Series Vacuum Dryer
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Vacuum Drying Equipment | |
| Place of Origin | Shanghai, China | Brand Name | SPM | |
| Model Number | FZG, YZG | Voltage | 380V/220V | |
| Power(W) | 2-5.5KW | Weight | 250-3200KG | |
| Certification | ISO | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
We can supply a complete set according to the users' requirments.
Main Application:
Vacuum dry is to let the raw material to be dried at vacuum condition heating and drying. It used vacuum pump to pump damp and make the working chamber form vacuum status. Therefore the dry speed pf raw material is quickened and the energy is saved greatly.
Vacuum dry is divided into static and dynamic drier. Model FZG round vacuum drier or Model FZG square vacuum drier belongs to static drier. Model SZG double cone rotating vacuum drier belongs to dynamic drier. When raw material is dried in static drier, raw material is in static state and its shape can not destroy.
Before drying, it can carry out the treatment of disinfection. When raw material is dried in dynamic drier, raw material is turned over ceaselessly. So it can be dried better and more uniformly.
In the state of vacuum, the boiling point of raw material will be dropped. Therefore it is suitable for drying raw materials that are unstable or thermal sensitive. The vacuum drier also has good air-tightness. So it is also suitable for drying raw materials that contain strong irritative and toxic gases and the solvent needs to recover.
The vacuum drier has been wide used for pharmaceutical industry, chemical industry, foodstuff industry, dyestuff industry and so on. Air is in conformity with the requirements of GMP.
Technical Parameters:
Model | YZG-600 | YZG-800 | YZG-1000 | YZG-1400A |
inner size of drying chamber | φ600*976mm | φ800*1247mm | φ1000*1527mm | φ1400*2054mm |
outer size of drying chamber | 1135*810*1020mm | 1700*1045*1335mm | 1693*1190*1500mm | 2380*1675*1920mm |
layers of baking support | 4 | 4 | 6 | 8 |
interval | 81mm | 82mm | 102mm | 102mm |
size of baking tray | 310*600*45mm | 520*410*45mm | 520*410*45mm | 460*640*45mm |
quantity of baking | 4 | 8 | 12 | 32 |
working pressure inside the pipe of bakingsupport | ≤0.784Mpa | ≤0.784Mpa | ≤0.784Mpa | ≤0.784Mpa |
operation temperature of baking support | 35-150℃ | 35-150℃ | 35-150℃ | 35-150℃ |
degree of vacuum inside the chamber when operation indle | —0.1Pa | —0.1Pa | —0.1Pa | —0.1Pa |
under the condition of-0.1Mpa and 110,evaporation rate of wate | 7.2kg/m2.hr | 7.2kg/m3.hr | 7.2kg/m2.hr | 7.2kg/m2.hr |
when condensor is used,Model | 2X-15A | 2X-30A | 2X-30A | 2X-70A |
when condensor is used power of vacuumpump | 2kw | 3kw | 3kw | 5.5kw |
when condensor is notused,Model | SZ-0.5 | SZ-1 | SZ-1 | SZ-2 |
when condensor is notused power of vacuumpump | 1.5kw | 2.2kw | 2.2kw | 4kw |
Weight of drying chamber | 250kg | 600kg | 800kg | 1400kg |
Model | FZG-10 | FZG-15 | FZG-20 |
inner size of drying chamber | φ1500*1060*1220mm | φ1500*1400*1220mm | φ1500*1800*1220mm |
outer size of drying chamber | 1924*1720*1513mm | 1513*1924*2060mm | 1924*2500*1513mm |
layers of baking support | 5 | 8 | 10 |
interval | 122mm | 122mm | 122mm |
size of baking tray | 460*640*45mm | 460*640*45mm | 460*640*45mm |
quantity of baking | 20 | 32 | 60 |
working pressure inside the pipe of bakingsupport | ≤0.784Mpa | ≤0.784Mpa | ≤0.784Mpa |
operation temperature of baking support | 35-150℃ | 35-150℃ | 35-150℃ |
degree of vacuum inside the chamber when operation indle | —0.1Pa | —0.1Pa | —0.1Pa |
under the condition of-0.1Mpa and 110,evaporation rate of wate | 7.2kg/m2.hr | 7.2kg/m2.hr | 7.2kg/m2.hr |
when condensor is used,Model | 2X-70A | 2X-70A | 2X-90A |
when condensor is used power of vacuumpump | 5.5kw | 5.5kw |
|
when condensor is notused,Model | SZ-2 | SZ-2 | SZ-2 |
when condensor is notused power of vacuumpump | 4kw | 4kw | 5.5kw |
Weight of drying chamber | 1400kg | 1400kg | 3200kg |
Note:SZ water ring vacuum pump can be used together with mechanical pressure increasing pump in order to increase vacuum.
NOTICE:
1. When order, please choose suitable vacuum drier in accordance with the physical property, primary moisture and final moisture of raw material to be dried and factors such as temperature, vacuum, drying amount and time and so on. Vacuum drier with same model has four heating ways, i.e. steam, hot water, heat conduction oil and electric heat. For example, in order to increase the output of product, the drying layer can be increased suitably. Please tell us in time.
2. The auxiliary parts of vacuum drying system indicated in user's Manual can be supplied and installed by our factory. Please indicate them when order.
3. If having special requirements, our factory can also design, manufacture and install as request.
4. For the equipment, our factory will carry out guarantee of repair replacement and refund of substandard products. All subassembly can be supplied in a long time. Please set your mind at rest.
