Capsule Filling Machine

Specifications

  We can supply a complete set according to the users' requirments

We have many kind of capsule filling machine and dies, please tell me your requirement, we will supply the best quality and price machine!

Product Description:
The factory production NJP-3500 automatic capsule-filling machine is in NJP-2000 automatic capsule-filling machine (more than 30) equipment, After States, both inside and outside, nearly three years of production use, comes essence, committed to innovation and improvement

1. A double row of 25-hole,the 12-bit design, at home and abroad to become only the largest single production of high-tech equipment.(1 hour production reached 210,000).

2. NJP-3500-filling machines, using RU140 with RU125 high-precision space at a reasonable choice for me, completely guarantee the stability of machinery and life.

3. NJP-3500 automatic capsule-filling machine for all the digital transmission of the cam, improved from the original cam, the spring stretch, to the special high-quality materials, production, transmission groove round, out of the spring Traction easy fatigue, short life of the shortcomings, and the wear-resistant, stable operation.

4. NJP-3500 automatic capsule-filling machines, taking into account the long run facilities, easy access to drugs dust die turntable set to be demolished to clean, innovative design, to seal ring for filters installed. Ensure full operation of the equipment and seal the cumbersome equipment maintenance shortcomings.

5. Uses the automatic oiling system, to the transmission part, the slotted concave wheel and the chain wheel carry on after 24 hours (production real-time)automatic oiling.In addition to the body and stainless steel storage disk, and clean, easy clean-up.

6. It adopts three dimensional control elements; and takes the undersurface plane of dosing disc as base ,so as to eliminate the natural transmutation of the dosing disc and copper saucer. It is uniformity in interval and guarantees the accurate filling weight, decreasing the phenomena of powder leak and easy to clean. It's the special design at domestic(Patent No.20042006795X).

7. Add the extra function of Capsule control switch.(Control the capsule outside of the machine: it's more safely and quickly.)8. Add the JOG control system, it's easier to operate and clean the machine. According to CE,ISO and GMP international standard.

Equipment Specification and Technical Parameter

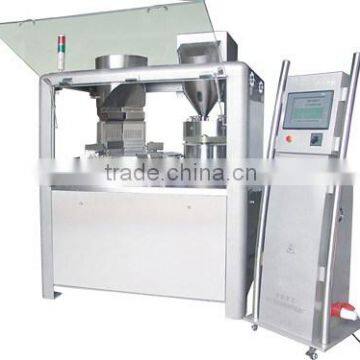

Equipment Model and Specification NJP-3500A Full Automatic Hard Capsule Filling Machine
Technical Parameter:

Machine weight 2300kg
Overall dimension 1270×1660×2200mm
Motor power 6.5kw+4kw (Dust Collector)
Power supply 3 phase, AC 380V; 50Hz
Max. Output 3500 capsules/min
Capsule size 00#~5# and safety capsule A~E
Capsule using rate 99.5%
Noise index ≤78dBA
Dosage difference ±3%
Compress air No
Water supply Water cycle pump compound water tank, or meet water source.
Vacuum degree -0.02~-0.06 MPa
Water volume 250L/h
Enter pipe inner-diameter 15mm
Waterspout inner-diameter 20mm
Working temperature 21°C±3°C
Working relative humidity 40~55%
Exhaust capacity 220m3/h
Special function Granule and powder mixed filing; Granule and tablet mixed filling; Powder collector function
(Another pipeline collect powder in the filling port, needn’t disinfect and accede to hopper directly)
Control system Frequency conversion adjust step less

Material Spare part that contact with the medicine adopt superior S.S 304# and 316L#
(Attach quality guarantee slip)
Criterion Conform to GMP completely
(Supply validate software and attach content after purchased product)
