casing drive adapter/Bauer drilling rig double wall casing pipe and tube
US$ 5,000 - 20,000
/ Unit
1 Unit(Min. Order)
- China Port/Shanghai/shenzhen/Tianjin
- T/T Credit Card
You May Like
-
bauer casing drive adapter drilling rig single wall casing piping and tubing
-
casing drive adapter/Casagrande drilling rig double wall casing piping and tubing
-
casing drive adapter/Casagrande drilling rig high quality casing pipe and tube
-
casing drive adapter/Casagrande drilling rig high quality drive adapter
-
bauer casing drive adapter for drilling rig
-
casing drive adapter/Casagrande drilling rig single wall casing drive adapter
Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | 620-2500mm diameter |
Product Description

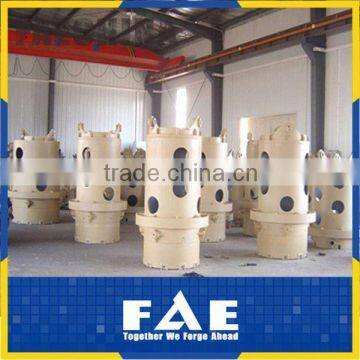

FAE drilling casing drive adapter
What FAE could offer?
-Single wall drill casing
-Double wall drill casing
-Casing shoes
-Drive adaptor
-Casing joint
Drilling casing drive adapter list is as below:
| diameter(mm) | d(mm) | B(mm) | H(mm) | Weight(kg) |
| 620/540 | 70 | 848 | 1794 | 679 |
| 750/670 | 70 | 848 | 1794 | 759 |
| 800/720 | 70 | 848 | 1794 | 816 |
| 880/800 | 70 | 848 | 1794 | 870 |
| 900/820 | 70 | 848 | 1794 | 894 |
| 1000/920 | 70 | 848 | 1794 | 1015 |
| 1180/1100 | 70 | 848 | 1794 | 1202 |
| 1200/1120 | 70 | 848 | 1794 | 1235 |
| 1300/1200 | 70 | 848 | 1794 | 1343 |
| 1500/1400 | 70 | 848 | 1794 | 2019 |
| 1800/1700 | 70 | 848 | 1794 | 2580 |
| 2000/2380 | 70 | 848 | 1794 | 3673 |
| 2500/2380 | 70 | 848 | 1794 | 5072 |
Drilling casing date list is as below:
D1/D2 mm | length(m) | a1(m) | a2(m) | a3(m) | ||||
| 2 | 3 | 4 | 5 | 6 | ||||
| weight(kg) | ||||||||
| 620/540 | 781 | 1125 | 1485 | 1839 | 2186 | 12 | 8 | 40 |
| 750/670 | 952 | 1378 | 1806 | 2234 | 2665 | 12 | 8 | 40 |
| 800/720 | 1026 | 1489 | 1949 | 2417 | 2882 | 12 | 8 | 40 |
| 880/800 | 1128 | 1635 | 2139 | 2650 | 3159 | 12 | 8 | 40 |
| 900/820 | 1154 | 1673 | 2188 | 2711 | 3231 | 12 | 8 | 40 |
| 1000/920 | 1364 | 1860 | 2443 | 3025 | 3604 | 12 | 8 | 40 |
| 1180/1100 | 1662 | 2433 | 3205 | 3972 | 4753 | 12 | 8 | 40 |
1200/1120 | 1704 | 2487 | 3276 | 4061 | 4851 | 12 | 8 | 40 |
| 1300/1220 | 1834 | 2687 | 3542 | 4394 | 5245 | 12 | 8 | 40 |
mm | length(m) | a1(m) | a2(m) | a3(m) | ||||
| 2 | 3 | 4 | 5 | 6 | ||||
| weight(kg) | ||||||||
| 1500/1400 | 2816 | 4041 | 5266 | 6492 | 7717 | 20 | 10 | 50 |
| 1800/1700 | 3394 | 4870 | 6347 | 7824 | 9301 | 20 | 10 | 50 |
| Heavy duty casng avaliable as perrequest | ||||||||
Drilling casing shoes list is as below:
| D(mm) | d(mm) | H(mm) | Noofteeth(pcs) | weight(kg) |
| 620 | 540 | 586 | 9 | 280 |
| 750 | 670 | 586 | 10 | 335 |
| 800 | 720 | 586 | 11 | 368 |
| 880 | 800 | 586 | 13 | 408 |
| 900 | 820 | 586 | 14 | 419 |
| 1000 | 920 | 586 | 15 | 468 |
| 1180 | 1100 | 586 | 17 | 557 |
| 1200 | 1120 | 586 | 18 | 567 |
| 1300 | 1220 | 586 | 19 | 615 |
| 1500 | 1420 | 586 | 22 | 1023 |
| 1800 | 1720 | 586 | 26 | 1235 |
| 2000 | 1880 | 586 | 30 | 1796 |
| 2500 | 2380 | 586 | 38 | 2261 |
| Heavy duty casng shoes avaliable as prerequest | ||||
Drilling casing joints list is as below:
D1/D2 (mm) | H (mm) | B (mm) | N (pcs) | Hole (pcs) | Bolt type | Weight (kg) |
| 620/540 | 350 | 40 | 4 | 8 | I | 233 |
| 750/670 | 350 | 40 | 4 | 8 | I | 285 |
| 800/720 | 350 | 40 | 4 | 8 | I | 304 |
| 880/800 | 350 | 40 | 4 | 8 | I | 333 |
| 900/820 | 350 | 40 | 4 | 8 | I | 341 |
| 1000/920 | 350 | 40 | 4 | 8 | I | 381 |
| 1180/1100 | 350 | 40 | 4 | 8 | I | 438 |
| 1200/1120 | 350 | 40 | 4 | 8 | I | 450 |
| 1300/1220 | 350 | 40 | 4 | 8 | I | 483 |
| 1500/1400 | 480 | 50 | 4 | 12 | I | 950 |
| 1800/1700 | 480 | 50 | 4 | 16 | I | 1146 |
| 2000/1880 | 480 | 50 | 6 | 12 | II | 1745 |
| 2500/2380 | 480 | 50 | 8 | 16 | II | 2197 |
| Heavy duty casing joint avaliable as prerequest. | ||||||
What is FAE casing items?
Whta is FAE casing packing?
What are FAE job site of casings?
What are FAE delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
