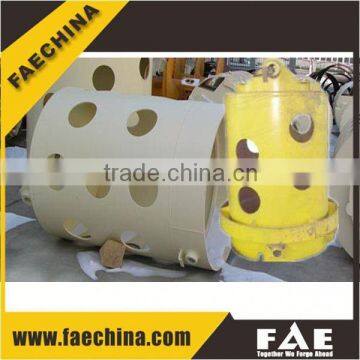

Home > Products > DRILLING CASING ITEMS > casing drive adapter/ISO9001 certified factory large diameter thick wall steel pipe,piling rig casing drive adapter
casing drive adapter/ISO9001 certified factory large diameter thick wall steel pipe,piling rig casing drive adapter
US$ 5,000 - 20,000
/ Unit
1 Unit(Min. Order)
- China Port/Shanghai/shenzhen/Tianjin
- T/T Credit Card
You May Like
-
ISO9001 certified factory piling rig casing pipe,double wall casing tubing
-
casing drive adapter/ISO9001 certified factory universal drill case,price casing drive adapter drilling
-
OD 800mm double wall casing drive adapter
-
casing drive adapter/Soilmec drilling rig single wall casing tube and pipe
-
casing drive adapter/Soilmec drilling rig single wall casing tubing and piping
-
different type single wall casing drive adapter
Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | 620-2500mm diameter |
Product Description
casing drive adapter/ISO9001 certified factory large diameter thick wall steel pipe,piling rig casing drive adapter
Product Description
What FAE could offer?
-Single wall drill casing
-Double wall drill casing
-Casing shoes
-Drive adaptor
-Casing joint
Drilling casing drive adapter list is as below:
| diameter(mm) | d(mm) | B(mm) | H(mm) | Weight(kg) |
| 620/540 | 70 | 848 | 1794 | 679 |
| 750/670 | 70 | 848 | 1794 | 759 |
| 800/720 | 70 | 848 | 1794 | 816 |
| 880/800 | 70 | 848 | 1794 | 870 |
| 900/820 | 70 | 848 | 1794 | 894 |
| 1000/920 | 70 | 848 | 1794 | 1015 |
| 1180/1100 | 70 | 848 | 1794 | 1202 |
| 1200/1120 | 70 | 848 | 1794 | 1235 |
| 1300/1200 | 70 | 848 | 1794 | 1343 |
| 1500/1400 | 70 | 848 | 1794 | 2019 |
| 1800/1700 | 70 | 848 | 1794 | 2580 |
| 2000/2380 | 70 | 848 | 1794 | 3673 |
| 2500/2380 | 70 | 848 | 1794 | 5072 |
Drilling casing date list is as below:
D1/D2 mm | length(m) | a1(m) | a2(m) | a3(m) | ||||
| 2 | 3 | 4 | 5 | 6 | ||||
| weight(kg) | ||||||||
| 620/540 | 781 | 1125 | 1485 | 1839 | 2186 | 12 | 8 | 40 |
| 750/670 | 952 | 1378 | 1806 | 2234 | 2665 | 12 | 8 | 40 |
| 800/720 | 1026 | 1489 | 1949 | 2417 | 2882 | 12 | 8 | 40 |
| 880/800 | 1128 | 1635 | 2139 | 2650 | 3159 | 12 | 8 | 40 |
| 900/820 | 1154 | 1673 | 2188 | 2711 | 3231 | 12 | 8 | 40 |
| 1000/920 | 1364 | 1860 | 2443 | 3025 | 3604 | 12 | 8 | 40 |
| 1180/1100 | 1662 | 2433 | 3205 | 3972 | 4753 | 12 | 8 | 40 |
1200/1120 | 1704 | 2487 | 3276 | 4061 | 4851 | 12 | 8 | 40 |
| 1300/1220 | 1834 | 2687 | 3542 | 4394 | 5245 | 12 | 8 | 40 |
mm | length(m) | a1(m) | a2(m) | a3(m) | ||||
| 2 | 3 | 4 | 5 | 6 | ||||
| weight(kg) | ||||||||
| 1500/1400 | 2816 | 4041 | 5266 | 6492 | 7717 | 20 | 10 | 50 |
| 1800/1700 | 3394 | 4870 | 6347 | 7824 | 9301 | 20 | 10 | 50 |
| Heavy duty casng avaliable as perrequest | ||||||||
Drilling casing shoes list is as below:
| D(mm) | d(mm) | H(mm) | Noofteeth(pcs) | weight(kg) |
| 620 | 540 | 586 | 9 | 280 |
| 750 | 670 | 586 | 10 | 335 |
| 800 | 720 | 586 | 11 | 368 |
| 880 | 800 | 586 | 13 | 408 |
| 900 | 820 | 586 | 14 | 419 |
| 1000 | 920 | 586 | 15 | 468 |
| 1180 | 1100 | 586 | 17 | 557 |
| 1200 | 1120 | 586 | 18 | 567 |
| 1300 | 1220 | 586 | 19 | 615 |
| 1500 | 1420 | 586 | 22 | 1023 |
| 1800 | 1720 | 586 | 26 | 1235 |
| 2000 | 1880 | 586 | 30 | 1796 |
| 2500 | 2380 | 586 | 38 | 2261 |
| Heavy duty casng shoes avaliable as prerequest | ||||
Drilling casing joints list is as below:
D1/D2 (mm) | H (mm) | B (mm) | N (pcs) | Hole (pcs) | Bolt type | Weight (kg) |
| 620/540 | 350 | 40 | 4 | 8 | I | 233 |
| 750/670 | 350 | 40 | 4 | 8 | I | 285 |
| 800/720 | 350 | 40 | 4 | 8 | I | 304 |
| 880/800 | 350 | 40 | 4 | 8 | I | 333 |
| 900/820 | 350 | 40 | 4 | 8 | I | 341 |
| 1000/920 | 350 | 40 | 4 | 8 | I | 381 |
| 1180/1100 | 350 | 40 | 4 | 8 | I | 438 |
| 1200/1120 | 350 | 40 | 4 | 8 | I | 450 |
| 1300/1220 | 350 | 40 | 4 | 8 | I | 483 |
| 1500/1400 | 480 | 50 | 4 | 12 | I | 950 |
| 1800/1700 | 480 | 50 | 4 | 16 | I | 1146 |
| 2000/1880 | 480 | 50 | 6 | 12 | II | 1745 |
| 2500/2380 | 480 | 50 | 8 | 16 | II | 2197 |
| Heavy duty casing joint avaliable as prerequest. | ||||||
What is FAE casing drive adapter?
Packaging & Shipping
What is FAE packing and delivering of casing drive adapter?
Our Services
Why Choose us?
Company Information
Company View
Our Certifications
What are FAE business cooperation?
FAQ
FAQ
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
Contact Us
- Hunan Fae Heavy Industries Co., Ltd.
- Contact nameEason wong Chat Now
- Phone86-0731-85718177
- AddressJinzhou New Industries District,Ningxiang,Changsha,Hunan Province,China, Changsha, Hunan
