Home > Products > DRILLING CASING ITEMS > High Quality Bauer Casing Driver Adapter for Foundation Works Accessories
High Quality Bauer Casing Driver Adapter for Foundation Works Accessories
US$ 5,000 - 20,000
/ Unit
1 Unit(Min. Order)
- China Port/Shanghai/shenzhen/Tianjin
- T/T Credit Card
You May Like
-
Double Wall and Single Wall Casing Drive Adapter for Foundation Pile
-
Casing Drive Adapter/ISO9001 Certified Factory Api 5
-
Casing Drive Adapter/ISO9001 Certified Factory Large Diameter Thick Wall Steel Pipe,piling Rig Casing Drive Adapter
-
ISO9001 Certified Factory Piling Rig Casing Pipe,double Wall Casing Tubing
-
Casing Drive Adapter/ISO9001 Certified Factory Universal Drill Case,price Casing Drive Adapter Drilling
-
OD 800mm Double Wall Casing Drive Adapter
Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | 620-2500mm diameter bauer casing driver adapter |
Product Description
high quality bauer casing driver adapter for foundation works accessories
Product Description

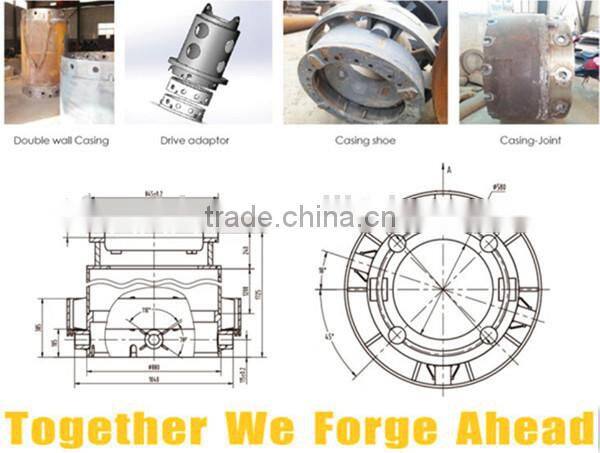

What FAE could offer?
-Single wall drill casing
-Double wall drill casing
-Casing shoes
-Drive adaptor
-Casing joint

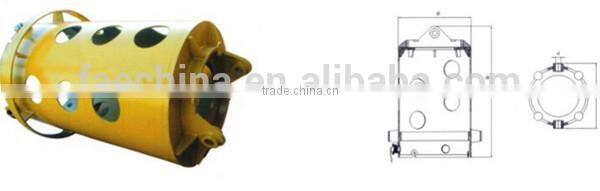

Drilling casing drive adapter list is as below:
| diameter(mm) | d(mm) | B(mm) | H(mm) | Weight(kg) |
| 620/540 | 70 | 848 | 1794 | 679 |
| 750/670 | 70 | 848 | 1794 | 759 |
| 800/720 | 70 | 848 | 1794 | 816 |
| 880/800 | 70 | 848 | 1794 | 870 |
| 900/820 | 70 | 848 | 1794 | 894 |
| 1000/920 | 70 | 848 | 1794 | 1015 |
| 1180/1100 | 70 | 848 | 1794 | 1202 |
| 1200/1120 | 70 | 848 | 1794 | 1235 |
| 1300/1200 | 70 | 848 | 1794 | 1343 |
| 1500/1400 | 70 | 848 | 1794 | 2019 |
| 1800/1700 | 70 | 848 | 1794 | 2580 |
| 2000/2380 | 70 | 848 | 1794 | 3673 |
| 2500/2380 | 70 | 848 | 1794 | 5072 |

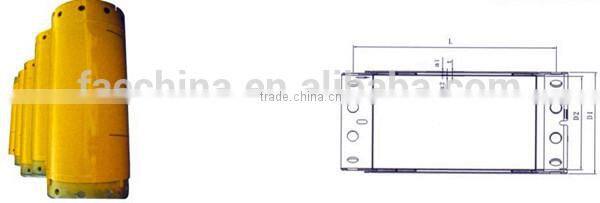

Drilling casing date list is as below:
D1/D2 mm | length(m) | a1(m) | a2(m) | a3(m) | ||||
| 2 | 3 | 4 | 5 | 6 | ||||
| weight(kg) | ||||||||
| 620/540 | 781 | 1125 | 1485 | 1839 | 2186 | 12 | 8 | 40 |
| 750/670 | 952 | 1378 | 1806 | 2234 | 2665 | 12 | 8 | 40 |
| 800/720 | 1026 | 1489 | 1949 | 2417 | 2882 | 12 | 8 | 40 |
| 880/800 | 1128 | 1635 | 2139 | 2650 | 3159 | 12 | 8 | 40 |
| 900/820 | 1154 | 1673 | 2188 | 2711 | 3231 | 12 | 8 | 40 |
| 1000/920 | 1364 | 1860 | 2443 | 3025 | 3604 | 12 | 8 | 40 |
| 1180/1100 | 1662 | 2433 | 3205 | 3972 | 4753 | 12 | 8 | 40 |
1200/1120 | 1704 | 2487 | 3276 | 4061 | 4851 | 12 | 8 | 40 |
| 1300/1220 | 1834 | 2687 | 3542 | 4394 | 5245 | 12 | 8 | 40 |
mm | length(m) | a1(m) | a2(m) | a3(m) | ||||
| 2 | 3 | 4 | 5 | 6 | ||||
| weight(kg) | ||||||||
| 1500/1400 | 2816 | 4041 | 5266 | 6492 | 7717 | 20 | 10 | 50 |
| 1800/1700 | 3394 | 4870 | 6347 | 7824 | 9301 | 20 | 10 | 50 |
| Heavy duty casng avaliable as perrequest | ||||||||

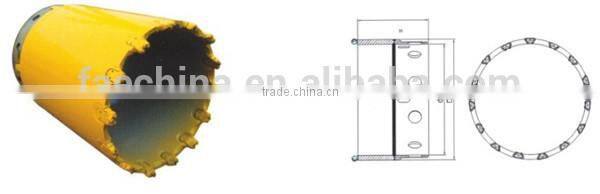

Drilling casing shoes list is as below:
| D(mm) | d(mm) | H(mm) | Noofteeth(pcs) | weight(kg) |
| 620 | 540 | 586 | 9 | 280 |
| 750 | 670 | 586 | 10 | 335 |
| 800 | 720 | 586 | 11 | 368 |
| 880 | 800 | 586 | 13 | 408 |
| 900 | 820 | 586 | 14 | 419 |
| 1000 | 920 | 586 | 15 | 468 |
| 1180 | 1100 | 586 | 17 | 557 |
| 1200 | 1120 | 586 | 18 | 567 |
| 1300 | 1220 | 586 | 19 | 615 |
| 1500 | 1420 | 586 | 22 | 1023 |
| 1800 | 1720 | 586 | 26 | 1235 |
| 2000 | 1880 | 586 | 30 | 1796 |
| 2500 | 2380 | 586 | 38 | 2261 |
| Heavy duty casng shoes avaliable as prerequest | ||||

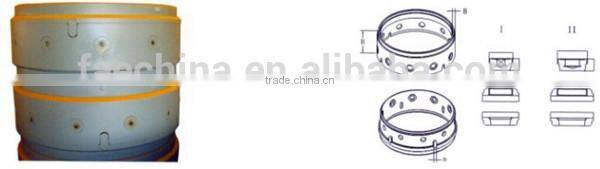

Drilling casing joints list is as below:
D1/D2 (mm) | H (mm) | B (mm) | N (pcs) | Hole (pcs) | Bolt type | Weight (kg) |
| 620/540 | 350 | 40 | 4 | 8 | I | 233 |
| 750/670 | 350 | 40 | 4 | 8 | I | 285 |
| 800/720 | 350 | 40 | 4 | 8 | I | 304 |
| 880/800 | 350 | 40 | 4 | 8 | I | 333 |
| 900/820 | 350 | 40 | 4 | 8 | I | 341 |
| 1000/920 | 350 | 40 | 4 | 8 | I | 381 |
| 1180/1100 | 350 | 40 | 4 | 8 | I | 438 |
| 1200/1120 | 350 | 40 | 4 | 8 | I | 450 |
| 1300/1220 | 350 | 40 | 4 | 8 | I | 483 |
| 1500/1400 | 480 | 50 | 4 | 12 | I | 950 |
| 1800/1700 | 480 | 50 | 4 | 16 | I | 1146 |
| 2000/1880 | 480 | 50 | 6 | 12 | II | 1745 |
| 2500/2380 | 480 | 50 | 8 | 16 | II | 2197 |
| Heavy duty casing joint avaliable as prerequest. | ||||||
