Home > Products > DRILLING CASING ITEMS > casing drive adapter/Casing And Tubing Coupling Joint, Casing Joints
casing drive adapter/Casing And Tubing Coupling Joint, Casing Joints
US$ 5,000 - 20,000
/ Unit
1 Unit(Min. Order)
- China Port/Shanghai/shenzhen/Tianjin
- T/T Credit Card
You May Like
-
high quality bauer casing driver adapter for foundation works accessories
-
double wall and single wall casing drive adapter for foundation pile
-
casing drive adapter/ISO9001 certified factory api 5
-
casing drive adapter/ISO9001 certified factory large diameter thick wall steel pipe,piling rig casing drive adapter
-
ISO9001 certified factory piling rig casing pipe,double wall casing tubing
-
casing drive adapter/ISO9001 certified factory universal drill case,price casing drive adapter drilling
Product Details
| Place of Origin | Hunan, China | Brand Name | FAE | |
| Model Number | 620-2500mm diameter |
Product Description

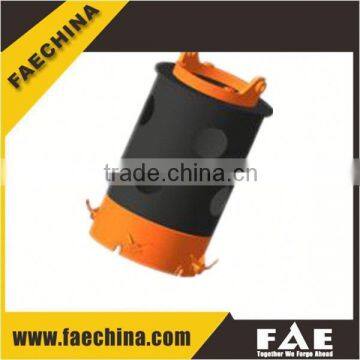

FAE drilling casing drive adapter
What FAE could offer?
-Single wall drill casing
-Double wall drill casing
-Casing shoes
-Drive adaptor
-Casing joint
Drilling casing drive adapter list is as below:
| diameter(mm) | d(mm) | B(mm) | H(mm) | Weight(kg) |
| 620/540 | 70 | 848 | 1794 | 679 |
| 750/670 | 70 | 848 | 1794 | 759 |
| 800/720 | 70 | 848 | 1794 | 816 |
| 880/800 | 70 | 848 | 1794 | 870 |
| 900/820 | 70 | 848 | 1794 | 894 |
| 1000/920 | 70 | 848 | 1794 | 1015 |
| 1180/1100 | 70 | 848 | 1794 | 1202 |
| 1200/1120 | 70 | 848 | 1794 | 1235 |
| 1300/1200 | 70 | 848 | 1794 | 1343 |
| 1500/1400 | 70 | 848 | 1794 | 2019 |
| 1800/1700 | 70 | 848 | 1794 | 2580 |
| 2000/2380 | 70 | 848 | 1794 | 3673 |
| 2500/2380 | 70 | 848 | 1794 | 5072 |
Drilling casing date list is as below:
D1/D2 mm | length(m) | a1(m) | a2(m) | a3(m) | ||||
| 2 | 3 | 4 | 5 | 6 | ||||
| weight(kg) | ||||||||
| 620/540 | 781 | 1125 | 1485 | 1839 | 2186 | 12 | 8 | 40 |
| 750/670 | 952 | 1378 | 1806 | 2234 | 2665 | 12 | 8 | 40 |
| 800/720 | 1026 | 1489 | 1949 | 2417 | 2882 | 12 | 8 | 40 |
| 880/800 | 1128 | 1635 | 2139 | 2650 | 3159 | 12 | 8 | 40 |
| 900/820 | 1154 | 1673 | 2188 | 2711 | 3231 | 12 | 8 | 40 |
| 1000/920 | 1364 | 1860 | 2443 | 3025 | 3604 | 12 | 8 | 40 |
| 1180/1100 | 1662 | 2433 | 3205 | 3972 | 4753 | 12 | 8 | 40 |
1200/1120 | 1704 | 2487 | 3276 | 4061 | 4851 | 12 | 8 | 40 |
| 1300/1220 | 1834 | 2687 | 3542 | 4394 | 5245 | 12 | 8 | 40 |
mm | length(m) | a1(m) | a2(m) | a3(m) | ||||
| 2 | 3 | 4 | 5 | 6 | ||||
| weight(kg) | ||||||||
| 1500/1400 | 2816 | 4041 | 5266 | 6492 | 7717 | 20 | 10 | 50 |
| 1800/1700 | 3394 | 4870 | 6347 | 7824 | 9301 | 20 | 10 | 50 |
| Heavy duty casng avaliable as perrequest | ||||||||
Drilling casing shoes list is as below:
| D(mm) | d(mm) | H(mm) | Noofteeth(pcs) | weight(kg) |
| 620 | 540 | 586 | 9 | 280 |
| 750 | 670 | 586 | 10 | 335 |
| 800 | 720 | 586 | 11 | 368 |
| 880 | 800 | 586 | 13 | 408 |
| 900 | 820 | 586 | 14 | 419 |
| 1000 | 920 | 586 | 15 | 468 |
| 1180 | 1100 | 586 | 17 | 557 |
| 1200 | 1120 | 586 | 18 | 567 |
| 1300 | 1220 | 586 | 19 | 615 |
| 1500 | 1420 | 586 | 22 | 1023 |
| 1800 | 1720 | 586 | 26 | 1235 |
| 2000 | 1880 | 586 | 30 | 1796 |
| 2500 | 2380 | 586 | 38 | 2261 |
| Heavy duty casng shoes avaliable as prerequest | ||||
Drilling casing joints list is as below:
D1/D2 (mm) | H (mm) | B (mm) | N (pcs) | Hole (pcs) | Bolt type | Weight (kg) |
| 620/540 | 350 | 40 | 4 | 8 | I | 233 |
| 750/670 | 350 | 40 | 4 | 8 | I | 285 |
| 800/720 | 350 | 40 | 4 | 8 | I | 304 |
| 880/800 | 350 | 40 | 4 | 8 | I | 333 |
| 900/820 | 350 | 40 | 4 | 8 | I | 341 |
| 1000/920 | 350 | 40 | 4 | 8 | I | 381 |
| 1180/1100 | 350 | 40 | 4 | 8 | I | 438 |
| 1200/1120 | 350 | 40 | 4 | 8 | I | 450 |
| 1300/1220 | 350 | 40 | 4 | 8 | I | 483 |
| 1500/1400 | 480 | 50 | 4 | 12 | I | 950 |
| 1800/1700 | 480 | 50 | 4 | 16 | I | 1146 |
| 2000/1880 | 480 | 50 | 6 | 12 | II | 1745 |
| 2500/2380 | 480 | 50 | 8 | 16 | II | 2197 |
| Heavy duty casing joint avaliable as prerequest. | ||||||
What is FAE casing items?
Whta is FAE casing packing?
What are FAE job site of casings?
What are FAE delivery?
Awaiting for your inquiry,we will response you at the first time!
Please contact us from this page or find our contacts from the Index page of our site.
FAE website for your further information:
WWW.FAECHINA.COM
