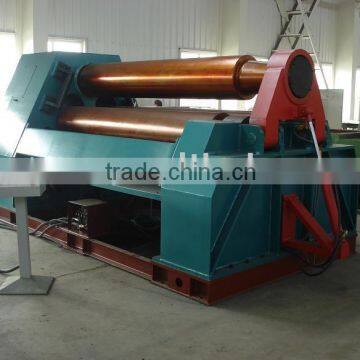

JXW11HNC-25X2500 3-roll plate bending machine with arc adjustable bottom rolls

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanxi, China
Brand Name	Bigstars	Model Number	JXW11HNC-25X2500
Machine Type	Roller-Bending Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Stainless Steel	Power	Hydraulic
Automation	Automatic	Certification	ISO 9001:2000
After-sales Service Provided	Engineers available to service machinery overseas

1. Specificaitons of three roll machine:

Specification	Max plate thickness (mm)	Pre-bending thickness (mm)	Max plate width (mm)	Top roller diameter (mm)	Bottom roller diameter (mm)	Bending speed (m/min)
JXW11HCNC-12X2000	12	10	2000	220	220	5
JXW11HCNC-12X2500	12	10	2500	280	280	4.5
JXW11HCNC-16X2000	16	12	2000	280	280	4.5
JXW11HCNC-16X2500	16	12	2500	300	300	4
JXW11HCNC-16X3000	16	12	3000	330	330	4
JXW11HCNC-20X2500	20	16	2500	330	330	4
JXW11HCNC-20X3000	20	16	3000	400	400	4
JXW11HCNC-30X2500	30	25	2500	450	450	4
JXW11HCNC-30X3000	30	25	3000	500	500	4
JXW11HCNC-35X2500	35	25	2500	500	500	4
JXW11HCNC-35X3000	35	25	3000	520	520	4
JXW11HCNC-40X2500	40	32	2500	520	500	4
JXW11HCNC-40X3000	40	32	3000	560	560	4
JXW11HCNC-50X2500	50	40	2500	580	580	4
JXW11HCNC-50X3000	50	40	3000
JXW11HCNC-60X2500	60	50	2500
JXW11HCNC-60X3000	60	50	3000
JXW11HCNC-70X2500	70	60	2500
JXW11HCNC-70X3000	70	60	3000
JXW11HCNC-80X2500	80	70	2500
JXW11HCNC-80X3000	80	70	3000
JXW11HCNC-90X2500	90	80	2500
JXW11HCNC-90X3000	90	80	3000
JXW11HCNC-100X2500	100	90	2500
JXW11HCNC-100X3000	100	90	3000
JXW11HCNC-120X2500	120	100	2500
JXW11HCNC-120X3000	120	100	3000
JXW11HCNC-140X2500	140	120	2500
JXW11HCNC-140X3000	140	120	3000
JXW11HCNC-160X2500	160	140	2500
JXW11HCNC-160X3000	160	140	3000
Note:	Machine specification range: plate thickness from 2~200mm, plate width from 500~7000mm. It depends on the customer’s requirements, plate specification and material.

2. Rolling process:

3. Machine structure diagram:

Bearings:

All bearings of rollers are center adjusting rolling bearings which have heavy duty and low loss.

Safety guard system:

when emergency happens, operator can easily stop the equipment and shutdown the system as to ensure the security of equipment and working staff.

Warranty: one year
