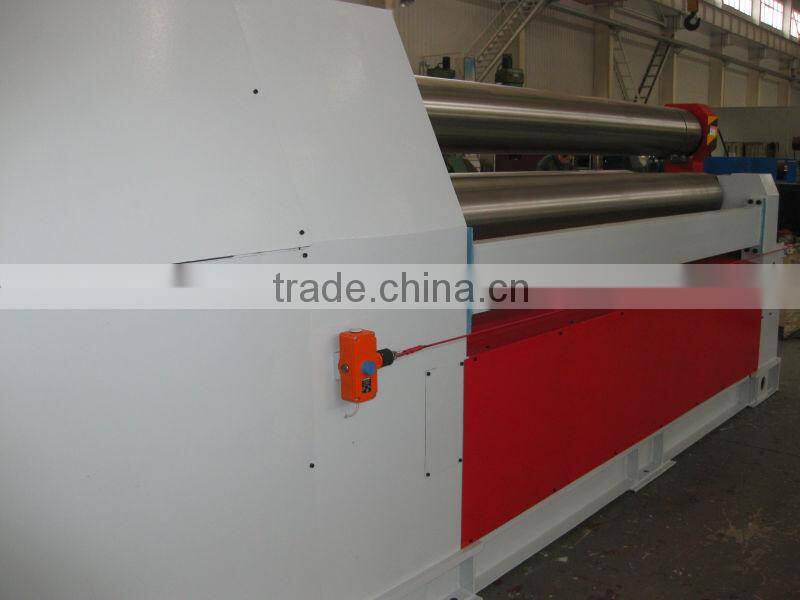

Steel Structure Chemical Industry Pressure Vessel Bending Machine Tube Bending Machine
- Tianjin or Shanghai
- T/T L/C D/P D/A
You May Like
-
3-ROLLER ARCH DOWN PLATE ROLLING MACHINE
-
JXW11XNC- 3-roll Plate Bending Machine With Horizontal Adjustable Bottom Rolls
-
JXW11XNC-25X2500 3-roll Plate Bending Machine With Horizontal Adjustment of Bottom Rolls
-
JXW11XNC-120X3000 Hydraulic Plate Rolling Machine
-
JXW11XNC-120X3000 Plate Rolling Machine
-
Hydraulic Plate Rolling Machine
Product Details
| Place of Origin | Shanxi, China | Brand Name | Bigstars | |
| Model Number | JXW11HNC-12X2500 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Extended rolls to bend angle steel and flat steel (Multi-function)
Safety limit switch
Safety line
Specificaitons of three roll machine:
Specification | Max plate thickness (mm) | Pre-bending thickness (mm) | Max plate width (mm) | Top roller diameter (mm) | Bottom roller diameter (mm) | Bending speed (m/min) |
JXW11HCNC-12X2000 | 12 | 10 | 2000 | 220 | 220 | 5 |
JXW11HCNC-12X2500 | 12 | 10 | 2500 | 280 | 280 | 4.5 |
JXW11HCNC-16X2000 | 16 | 12 | 2000 | 280 | 280 | 4.5 |
JXW11HCNC-16X2500 | 16 | 12 | 2500 | 300 | 300 | 4 |
JXW11HCNC-16X3000 | 16 | 12 | 3000 | 330 | 330 | 4 |
JXW11HCNC-20X2500 | 20 | 16 | 2500 | 330 | 330 | 4 |
JXW11HCNC-20X3000 | 20 | 16 | 3000 | 400 | 400 | 4 |
JXW11HCNC-30X2500 | 30 | 25 | 2500 | 450 | 450 | 4 |
JXW11HCNC-30X3000 | 30 | 25 | 3000 | 500 | 500 | 4 |
JXW11HCNC-35X2500 | 35 | 25 | 2500 | 500 | 500 | 4 |
JXW11HCNC-35X3000 | 35 | 25 | 3000 | 520 | 520 | 4 |
JXW11HCNC-40X2500 | 40 | 32 | 2500 | 520 | 500 | 4 |
JXW11HCNC-40X3000 | 40 | 32 | 3000 | 560 | 560 | 4 |
JXW11HCNC-50X2500 | 50 | 40 | 2500 | 580 | 580 | 4 |
JXW11HCNC-50X3000 | 50 | 40 | 3000 |
|
|
|
JXW11HCNC-60X2500 | 60 | 50 | 2500 |
|
|
|
JXW11HCNC-60X3000 | 60 | 50 | 3000 |
|
|
|
JXW11HCNC-70X2500 | 70 | 60 | 2500 |
|
|
|
JXW11HCNC-70X3000 | 70 | 60 | 3000 |
|
|
|
JXW11HCNC-80X2500 | 80 | 70 | 2500 |
|
|
|
JXW11HCNC-80X3000 | 80 | 70 | 3000 |
|
|
|
JXW11HCNC-90X2500 | 90 | 80 | 2500 |
|
|
|
JXW11HCNC-90X3000 | 90 | 80 | 3000 |
|
|
|
JXW11HCNC-100X2500 | 100 | 90 | 2500 |
|
|
|
JXW11HCNC-100X3000 | 100 | 90 | 3000 |
|
|
|
JXW11HCNC-120X2500 | 120 | 100 | 2500 |
|
|
|
JXW11HCNC-120X3000 | 120 | 100 | 3000 |
|
|
|
JXW11HCNC-140X2500 | 140 | 120 | 2500 |
|
|
|
JXW11HCNC-140X3000 | 140 | 120 | 3000 |
|
|
|
JXW11HCNC-160X2500 | 160 | 140 | 2500 |
|
|
|
JXW11HCNC-160X3000 | 160 | 140 | 3000 |
|
|
|
Note: | Machine specification range: plate thickness from 2~200mm, plate width from 500~7000mm. It depends on the customer’s requirements, plate specification and material. | |||||
Rolling process:
Machine structure diagram:
