Home > Products > 3-roll plate bending machine (inclined) > Engineers available to service machinery overseas After-sales Service Provided and New Condition hydraulic plate bending machine

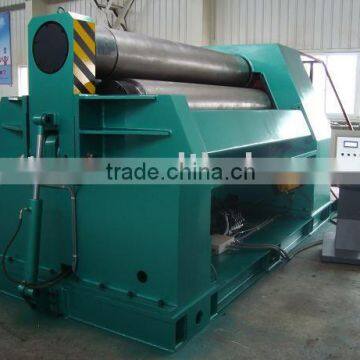

Engineers available to service machinery overseas After-sales Service Provided and New Condition hydraulic plate bending machine
- Tianjin China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shanxi, China | |
| Brand Name | Bigstars | Model Number | JXW11QNC-26X2500 | |
| Machine Type | Roller-Bending Machine | Raw Material | Other | |
| Material / Metal Processed | Stainless Steel | Power | Hydraulic | |
| Automation | Automatic | Extra Services | Other | |
| Certification | ISO 9001:2000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
The lasted model in European market.
Similar to 4-roll plate bending machine.(The latter has 1 more bottom roll).
The side roll can move up and down with only one end.
Special functions of revision and cylinder regulated.
Components Brand:
a. hydraulic valve: Northman, Taiwan
b. Main heavy current element: Schneider Electric
c. PLC: OMRON, Japan
d. Linear displacement Sensor: NOVO, Germany
e. Joint & oil pipe: American Eton
Processing technique of key parts
The processing technique of working rollers is as follows,
Cast ingot →forging→ annealing→ first fault detection → rough machining → hardening and tempering→ second fault detection→ artificial aging treatment → finish machining
Specifications of three roll machine:
Specification | Max plate thickness (mm) | Pre-bending thickness (mm) | Max plate width (mm) | Top roller diameter (mm) | Bottom roller diameter (mm) | Bending speed (m/min) |
JXW11QCNC-12X2000 | 12 | 10 | 2000 | 220 | 220 |
|
JXW11QCNC-12X2500 | 12 | 10 | 2500 | 280 | 280 |
|
JXW11QCNC-16X2000 | 16 | 12 | 2000 | 260 | 260 | 5 |
JXW11QCNC-16X2500 | 16 | 12 | 2500 | 300 | 280 |
|
JXW11QCNC-16X3000 | 16 | 12 | 3000 | 330 | 300 |
|
JXW11QCNC-20X2500 | 20 | 12 | 2500 | 330 | 330 |
|
JXW11QCNC-20X3000 | 20 | 16 | 3000 | 400 | 380 | 5 |
JXW11QCNC-30X2500 | 30 | 25 | 2500 | 460 | 430 | 4 |
JXW11QCNC-30X3000 | 30 | 26 | 3000 | 500 | 460 | 4 |
JXW11QCNC-35X2500 | 35 | 28 | 2500 | 500 | 460 |
|
JXW11QCNC-35X3000 | 35 | 30 | 3000 | 520 | 480 |
|
JXW11QCNC-40X2500 | 40 | 35 | 2500 | 520 | 500 | 4 |
JXW11QCNC-40X3000 | 40 | 32 | 3000 | 560 | 540 | 3.5 |
JXW11QCNC-50X2500 | 50 | 42 | 2500 | 560 | 520 | 4 |
JXW11QCNC-50X3000 | 50 | 40 | 3000 | 560 | 520 |
|
JXW11QCNC-60X2500 | 60 | 50 | 2500 | 580 | 560 | 4 |
JXW11QCNC-60X3000 | 60 | 50 | 3000 | 600 | 580 |
|
JXW11QCNC-70X2500 | 70 | 60 | 2500 | 620 | 600 | 3.5 |
JXW11QCNC-70X3000 | 70 | 60 | 3000 | 660 | 620 | 3.5 |
JXW11QCNC-80X2500 | 80 | 70 | 2500 | 680 | 640 | 3.5 |
JXW11QCNC-80X3000 | 80 | 70 | 3000 | 700 | 680 | 3.5 |
JXW11QCNC-90X2500 | 90 | 80 | 2500 | 740 | 710 | 3.5 |
JXW11QCNC-90X3000 | 90 | 80 | 3000 | 780 | 720 | 3.5 |
JXW11QCNC-100X2500 | 100 | 90 | 2500 | 800 | 760 | 3.5 |
JXW11QCNC-100X3000 | 100 | 90 | 3000 | 820 | 800 | 3.5 |
JXW11QCNC-120X2500 | 120 | 100 | 2500 | 840 | 820 | 3.5 |
JXW11QCNC-120X3000 | 120 | 100 | 3000 | 860 | 840 | 3.5 |
JXW11QCNC-140X2500 | 140 | 120 | 2500 |
|
|
|
JXW11QCNC-140X3000 | 140 | 120 | 3000 |
|
|
|
JXW11QCNC-160X2500 | 160 | 140 | 2500 |
|
|
|
JXW11QCNC-160X3000 | 160 | 140 | 3000 |
|
|
|
Note: | Machine specification range: plate thickness from 2~200mm, plate width from 500~7000mm. It depends on the customer’s requirements, plate specification and material. | |||||
Rolling process:
Machine structure diagram:
Why choose YOU?
1. Over 13-year professional maufacturing experience;
2. High-technology processing equipment;
3. Competitive price, trustable maitenance and instant service.
4. Engineers available to service machine overseas. Free installation, trial start and adjustment, training. The buyer takes charge of all the expenditure including airplane tickets of our engineers when in the buyer’s country to do the service!
5. Instant and satisfied atter-sales service.
6. One year warranty for the machine for free and life-time service for the machine.
So, do not hesitate to contact me as follows,
Ms. Anna
Mob: (86)15935542018
Tel: (86)355-3569502-8028
Fax: (86)355-3569562
How to VISIT your factory?
Fly to Beijing Capital International airport or Shanghai International Aiport from your country, then Fly from Beijing or Shanghai directly to Changzhi airport for about 1 or 2 hours. We will pick you up at Changzhi airport, which is very near to our factory.
Our address is Changzhi city, Shanxi province, China.
