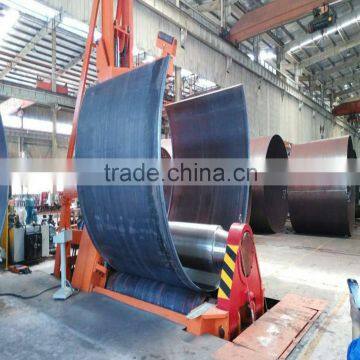

CNC Steel plate rolling machine
- Tianjin
- T/T
You May Like
-
CNC hydraulic three roll plate rolling machine
-
steel plate rolling machine
-
New condition 3-roll hydraulic steel sheet plate rolling machine
-
used sheet metal equipment 3 roll plate bending machine
-
ISO 9001:2000 Certification and Hydraulic Power CNC auto Plate rolling Machine
-
Steel Rolling-bending Machine
Product Details
| Condition | New | Place of Origin | Shanxi, China | |
| Brand Name | Bigstars | Model Number | JXW11QNC-90X3000 | |
| Machine Type | Roller-Bending Machine | Raw Material | Sheet / Plate Rolling | |
| Material / Metal Processed | Stainless Steel | Power | Hydraulic | |
| Automation | Automatic | Certification | ISO 9001:2000 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Similar to a 4 Roll Plate Bending Machine
TSimilar to a 4 roll plate bending machine
(The latter has 1 more lower roll.)
Special functions of cylinder regulated
Operation panel:
Specificaitons of three roll machine:
Specification | Max plate thickness (mm) | Pre-bending thickness (mm) | Max plate width (mm) | Top roller diameter (mm) | Bottom roller diameter (mm) | Bending speed (m/min) |
JXW11QCNC-12X2000 | 12 | 10 | 2000 | 220 | 220 |
|
JXW11QCNC-12X2500 | 12 | 10 | 2500 | 280 | 280 |
|
JXW11QCNC-16X2000 | 16 | 12 | 2000 | 260 | 260 | 5 |
JXW11QCNC-16X2500 | 16 | 12 | 2500 | 300 | 280 |
|
JXW11QCNC-16X3000 | 16 | 12 | 3000 | 330 | 300 |
|
JXW11QCNC-20X2500 | 20 | 12 | 2500 | 330 | 330 |
|
JXW11QCNC-20X3000 | 20 | 16 | 3000 | 400 | 380 | 5 |
JXW11QCNC-30X2500 | 30 | 25 | 2500 | 460 | 430 | 4 |
JXW11QCNC-30X3000 | 30 | 26 | 3000 | 500 | 460 | 4 |
JXW11QCNC-35X2500 | 35 | 28 | 2500 | 500 | 460 |
|
JXW11QCNC-35X3000 | 35 | 30 | 3000 | 520 | 480 |
|
JXW11QCNC-40X2500 | 40 | 35 | 2500 | 520 | 500 | 4 |
JXW11QCNC-40X3000 | 40 | 32 | 3000 | 560 | 540 | 3.5 |
JXW11QCNC-50X2500 | 50 | 42 | 2500 | 560 | 520 | 4 |
JXW11QCNC-50X3000 | 50 | 40 | 3000 | 560 | 520 |
|
JXW11QCNC-60X2500 | 60 | 50 | 2500 | 580 | 560 | 4 |
JXW11QCNC-60X3000 | 60 | 50 | 3000 | 600 | 580 |
|
JXW11QCNC-70X2500 | 70 | 60 | 2500 | 620 | 600 | 3.5 |
JXW11QCNC-70X3000 | 70 | 60 | 3000 | 660 | 620 | 3.5 |
JXW11QCNC-80X2500 | 80 | 70 | 2500 | 680 | 640 | 3.5 |
JXW11QCNC-80X3000 | 80 | 70 | 3000 | 700 | 680 | 3.5 |
JXW11QCNC-90X2500 | 90 | 80 | 2500 | 740 | 710 | 3.5 |
JXW11QCNC-90X3000 | 90 | 80 | 3000 | 780 | 720 | 3.5 |
JXW11QCNC-100X2500 | 100 | 90 | 2500 | 800 | 760 | 3.5 |
JXW11QCNC-100X3000 | 100 | 90 | 3000 | 820 | 800 | 3.5 |
JXW11QCNC-120X2500 | 120 | 100 | 2500 | 840 | 820 | 3.5 |
JXW11QCNC-120X3000 | 120 | 100 | 3000 | 860 | 840 | 3.5 |
JXW11QCNC-140X2500 | 140 | 120 | 2500 |
|
|
|
JXW11QCNC-140X3000 | 140 | 120 | 3000 |
|
|
|
JXW11QCNC-160X2500 | 160 | 140 | 2500 |
|
|
|
JXW11QCNC-160X3000 | 160 | 140 | 3000 |
|
|
|
Note: | Machine specification range: plate thickness from 2~200mm, plate width from 500~7000mm. It depends on the customer’s requirements, plate specification and material. | |||||
Rolling process:
Machine structure diagram:
