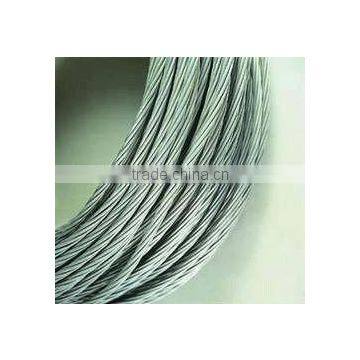

Aluminum bare conductor with steel core (ACSR)

ACSR,AAC,AAAC,ASCSR&ACAR conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.

1. Standard
ASTM B 232, ASTM B416-98, BS 215 part 2, AS 3607, DIN48204, IEC61089, GB/T1179-2008 etc.
ACSR has a simple structure, easy to set up and maintenance, low-cost lines, transmission capacity, but also conducive to cross-rivers and valleys, such as the laying of special geographical conditions, has good conductive properties and sufficient mechanical strength, tensile strength of large , shot from the tower can be enlarged and so on. Therefore widely used in a variety of voltage levels of overhead transmission and distribution lines.

2. Application
Aluminum Conductor, Steel Reinforced/ ACSR is widely used in long-span transmission line, overhead ground conductor, extra high voltage overhead conductor, optical fiber composite overhead ground line, self-damping conductor line, etc.

3. Standard
ASTM B 232, ASTM B416-98, BS 215 part 2, AS 3607, DIN48204, IEC61089, GB/T1179-2008 etc.

4. Packing
It is packed in wooden drum

The data sheets below show partial ACSR(Characteristics of A1/S1A Conductor) technical characters based on standard IEC 61089:

Bare Conductors includes the following Product Range :
